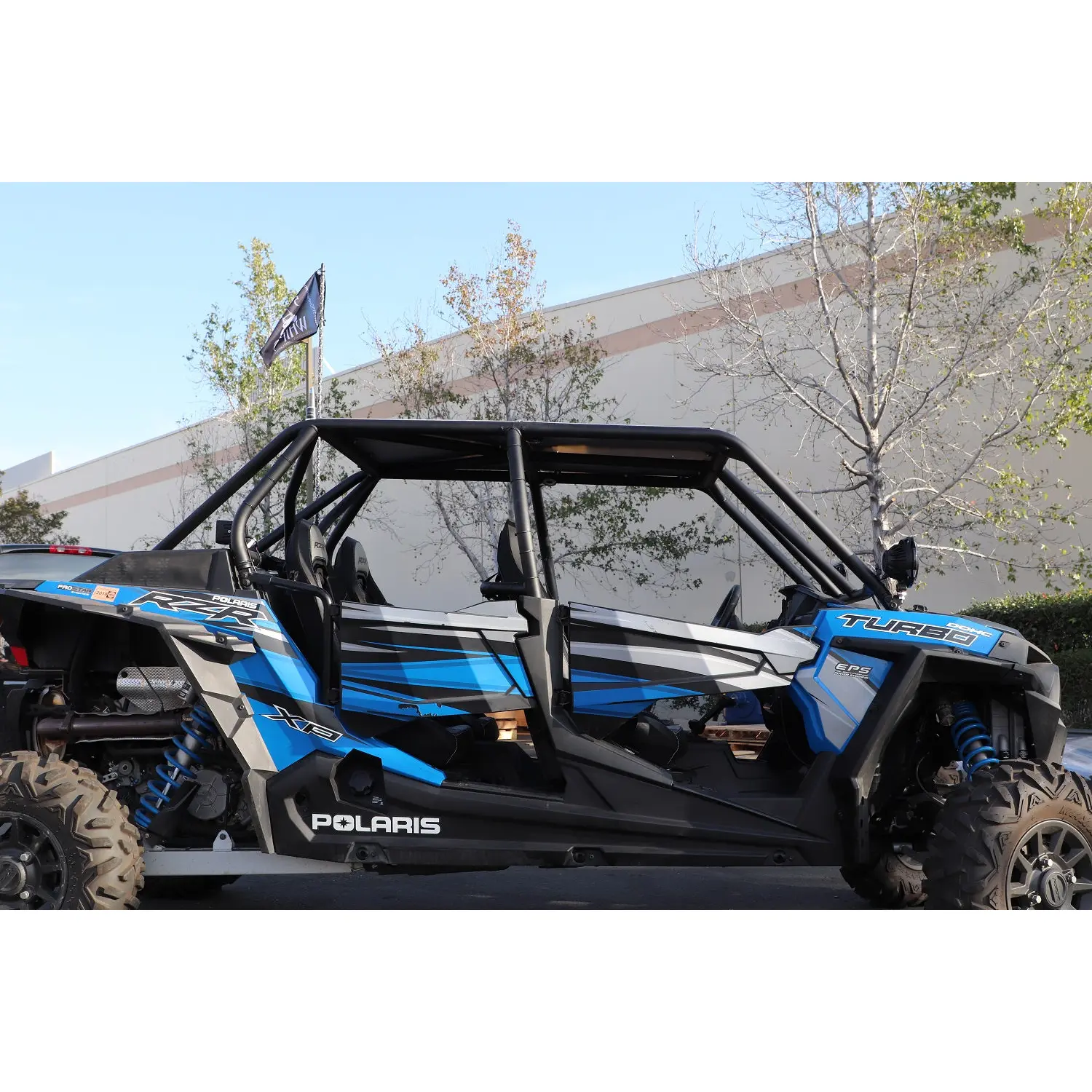

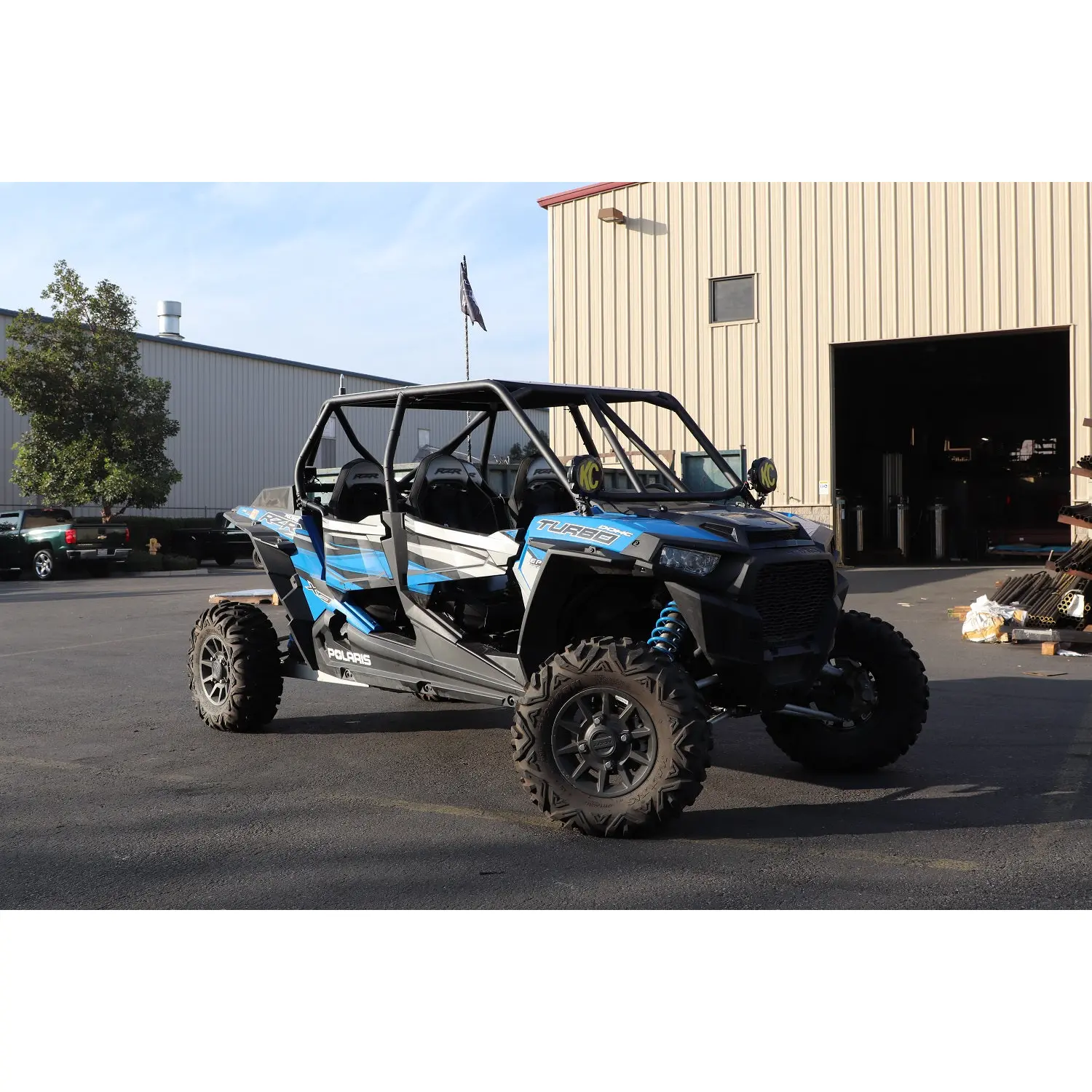

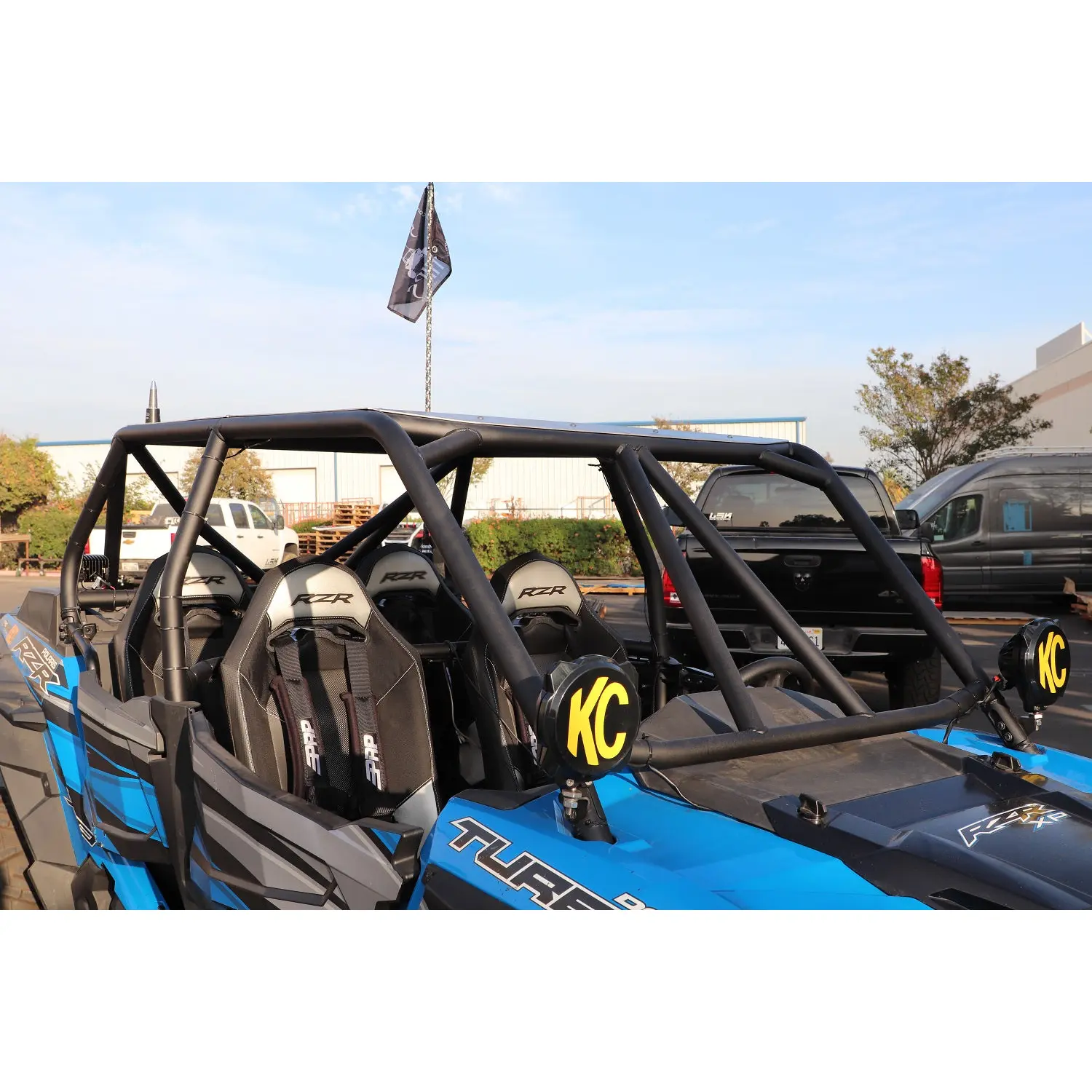

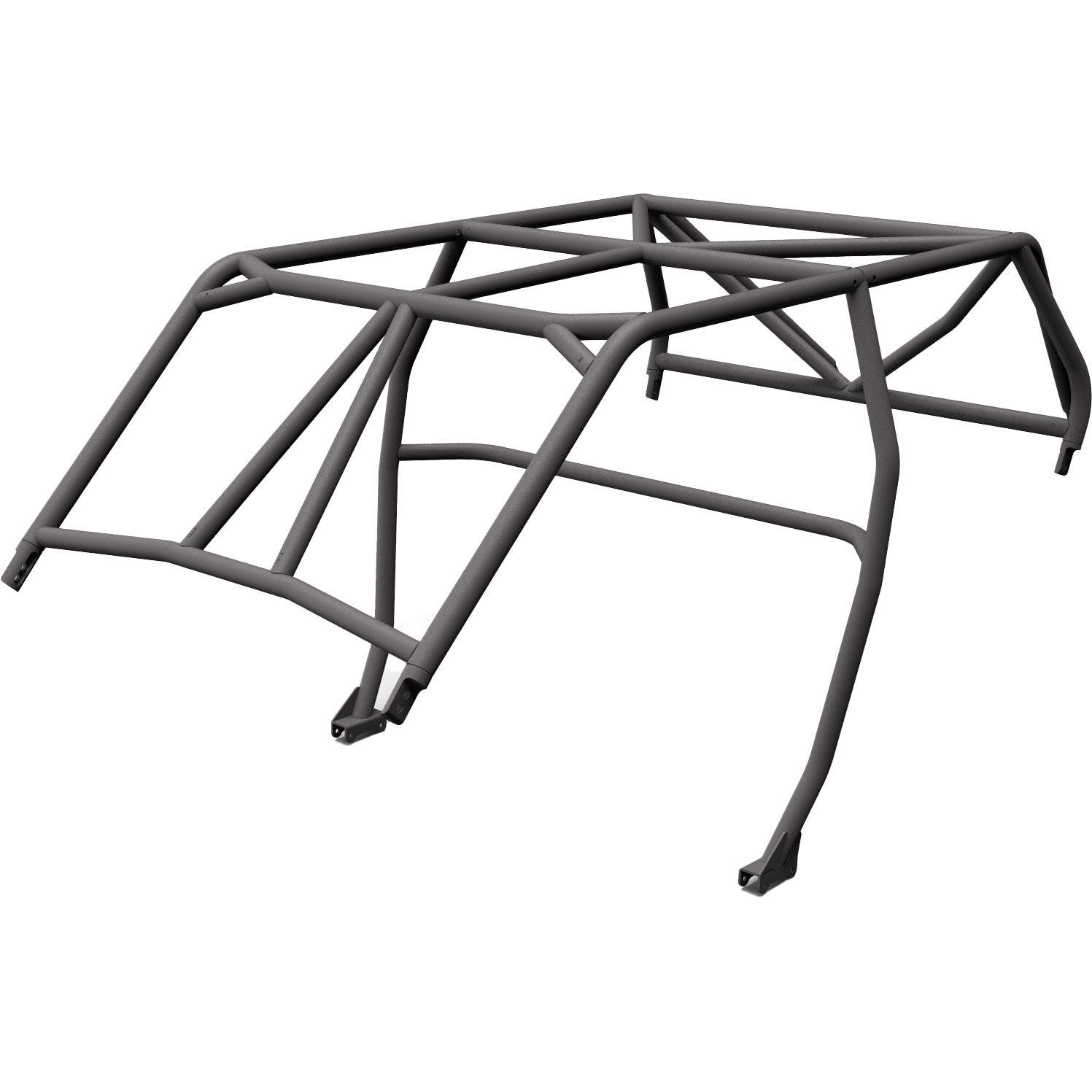

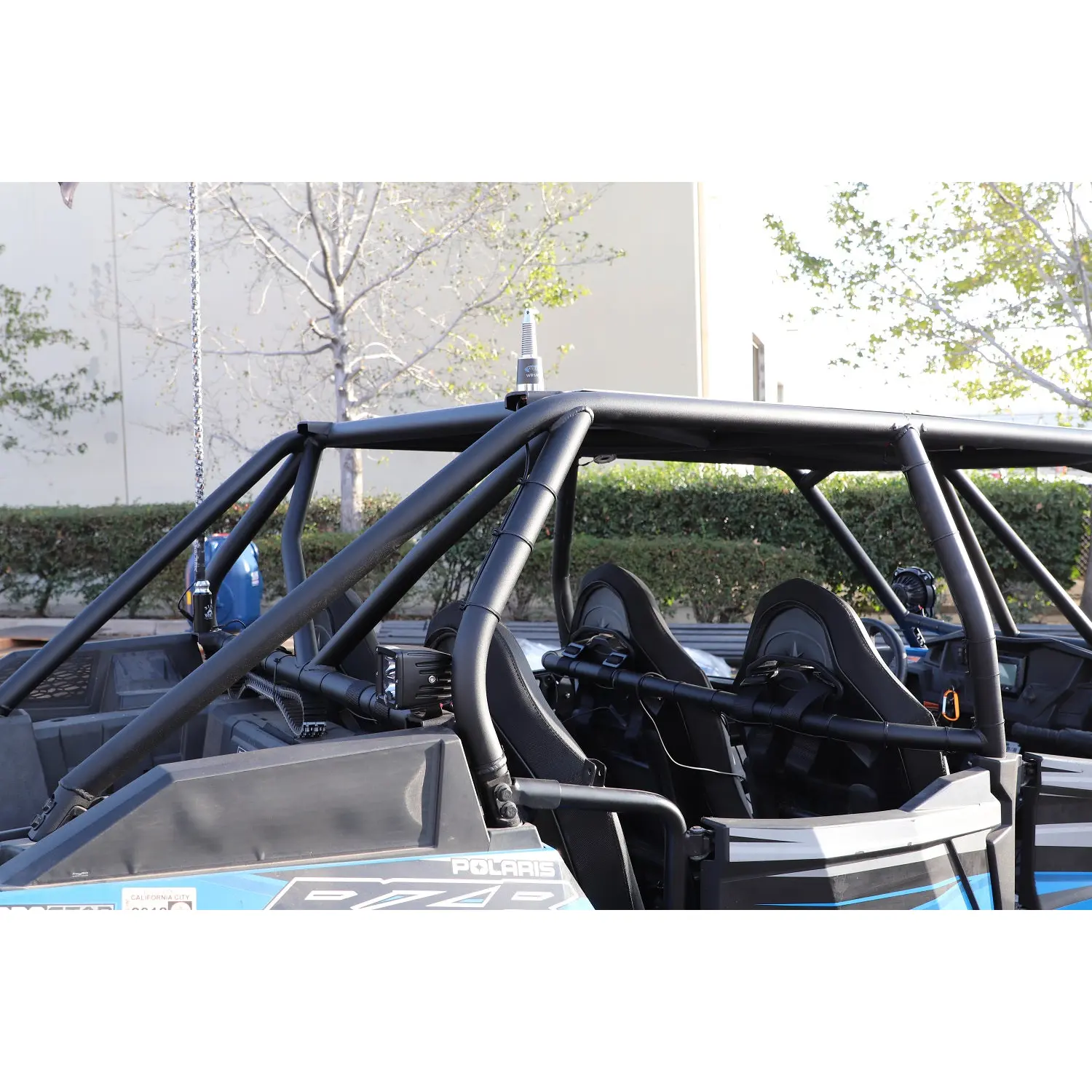

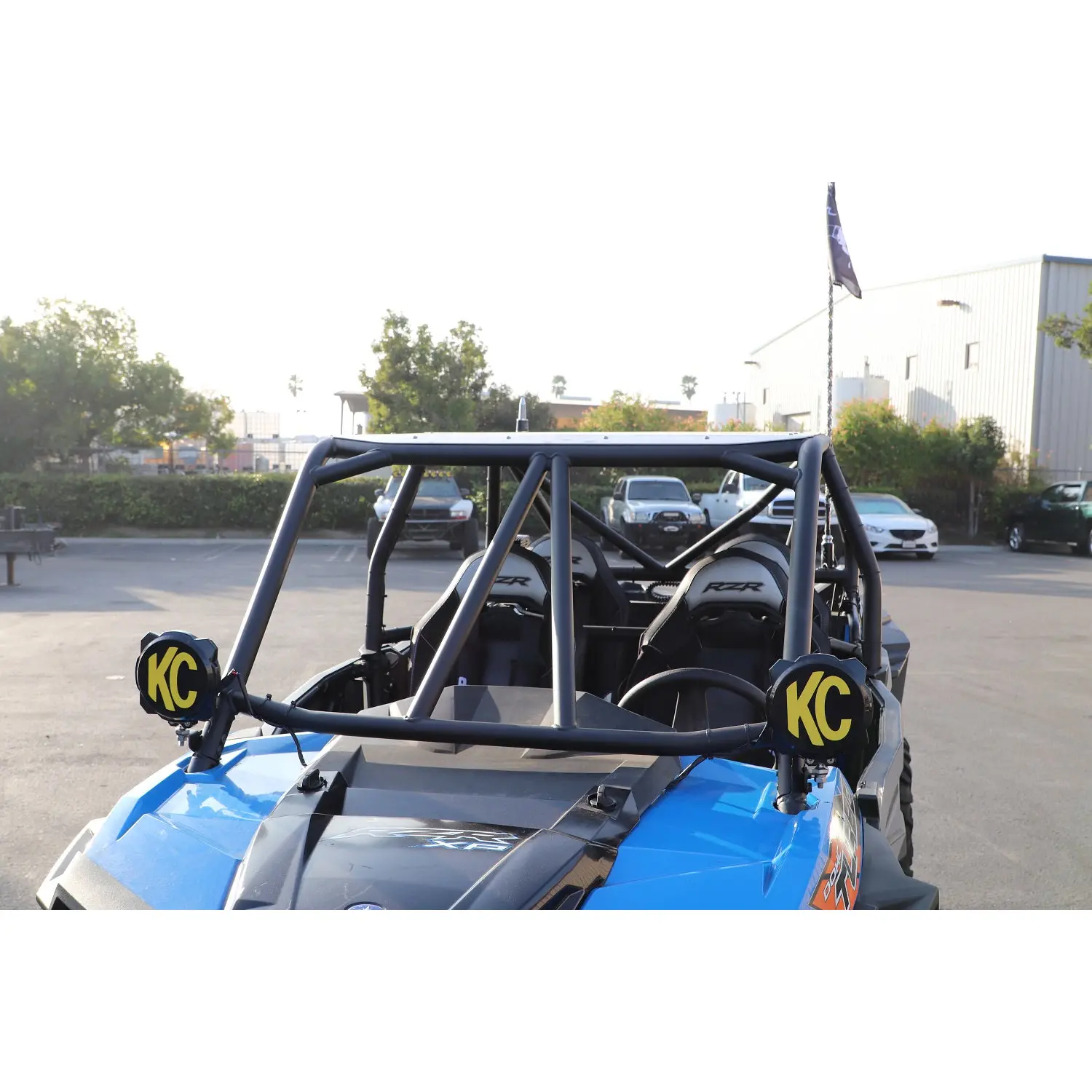

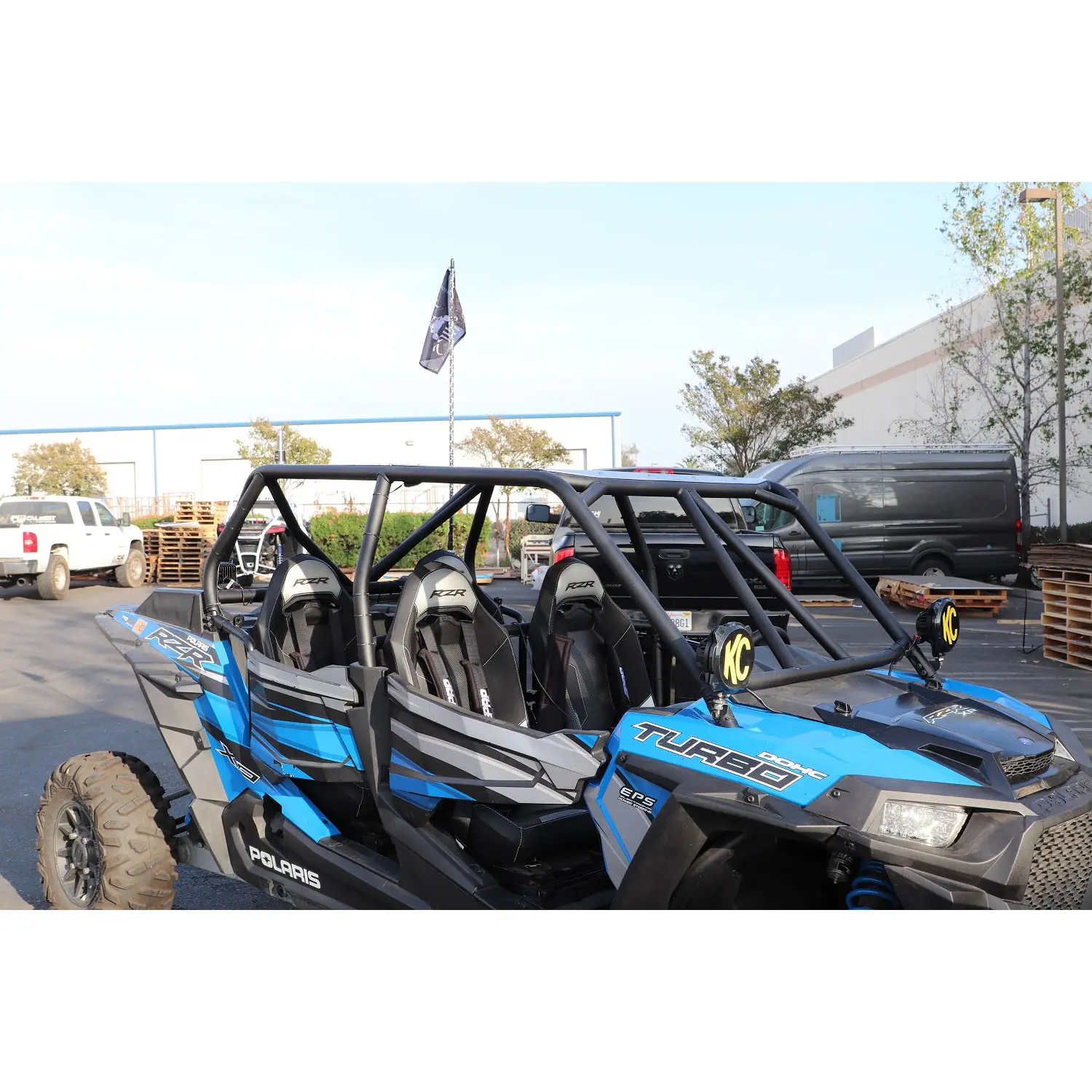

XP1000 / TURBO S - 4 Seat Flat Cage

Description

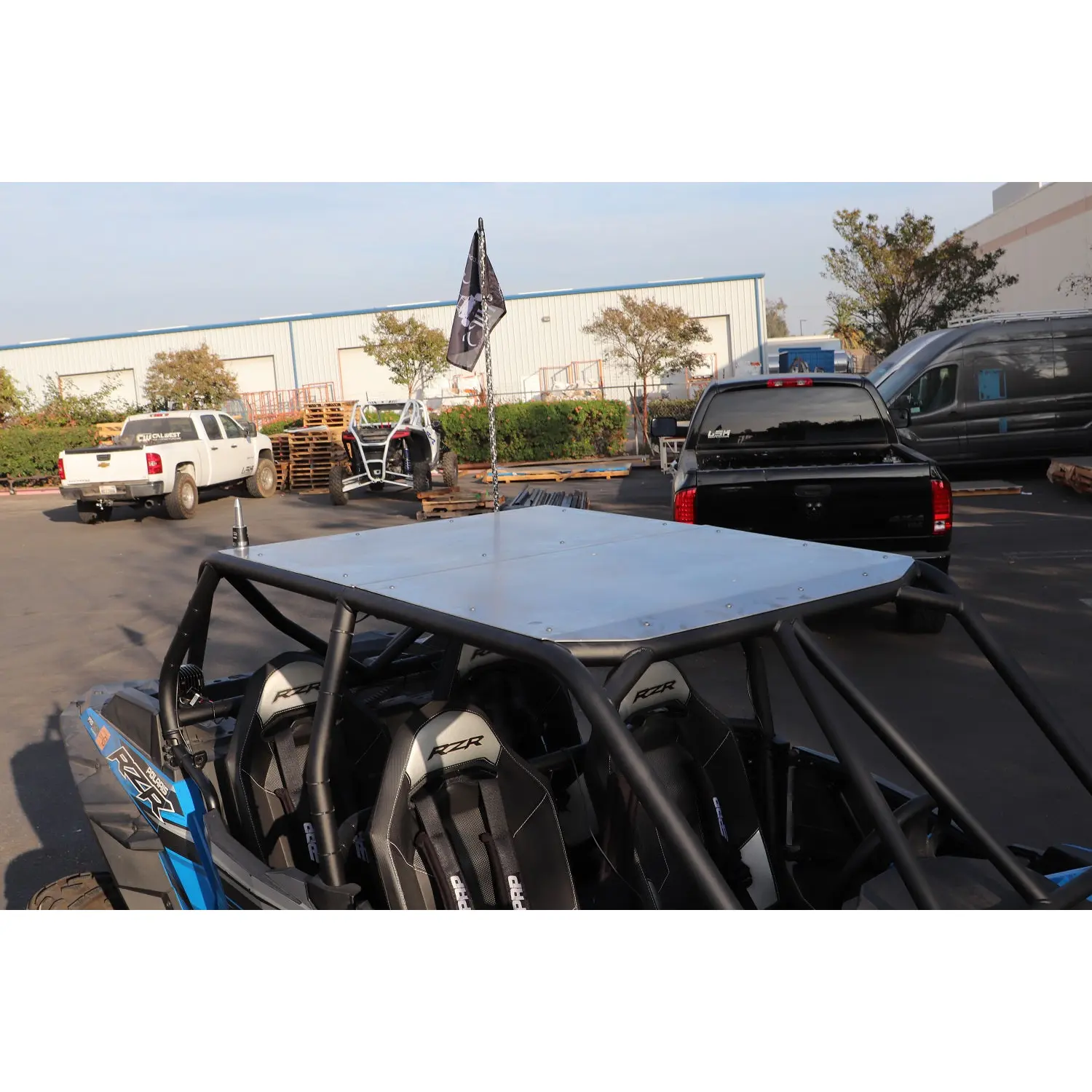

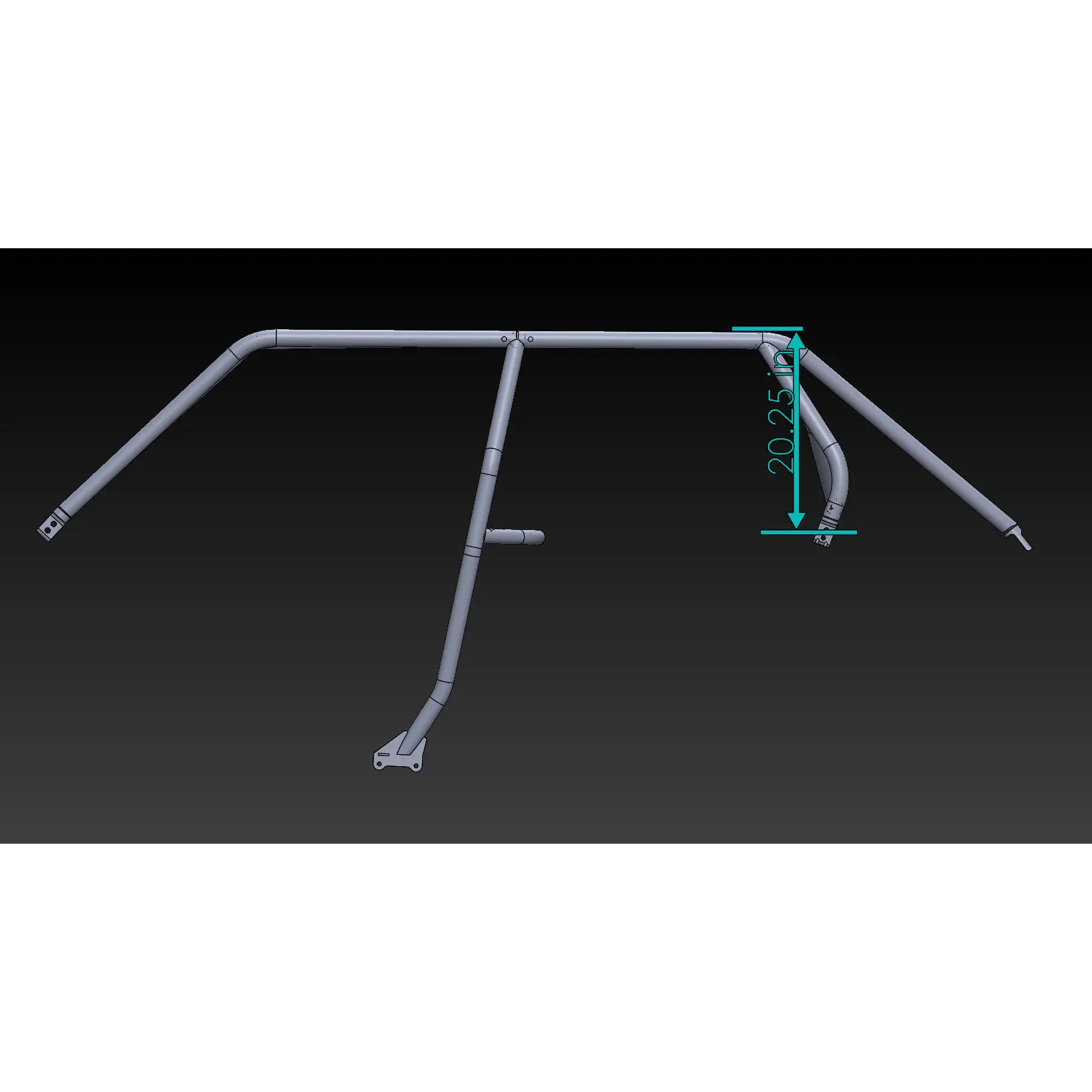

Description: Introducing The Weld It Yourself FLAT Cage Kit For Your 2014+ Polaris XP1000 4 Seater! This Cage Is Built With Both .120″ Wall & .095″ DOM Tubing That Can Be Either MIG Or TIG Welded Without The Use Of A Specialized Fixture – Just Install The Supplied Connectors To The Stock Cage Locations And Piece Together The Cage On The Vehicle. INCLUDES: 23 Laser Cut Tube Pieces With Laser Etched Part Numbers On Each Component 1.75″ OD .120 Wall DOM Tubing for Main Hoops 1.75″ OD For Main Structure Components & 1.50″ OD .095 Wall DOM Tubing For Windshield Cross Bars (2) A Pillar & (4) B or C Pillar Clamps To Attach To OEM Cage Location REQUIRES: Welding – This Kit Can Be Welded Together Once Configured On The Vehicle UPGRADES Aluminum Roof -.06 Thick 2 Piece Roof W/ Small Visor Bend & Bead Rolled Connection – Complete With Weld On Tabs And 1/4″ Grade 8 Hardware NOTES: This Cage Sits 19.25″ (48.89cm) Tall From Center of Top C Pillar Mounting Bolt To Highest Point On Cage Must Use A Floor Jack Under Center Of Vehicle During Installation To “Level Out” The Frame Rails – Failure To Do So Will Make Aligning The Cage At The Factory Locations Difficult

Specifications

• Assembly

  Weld-It-Yourself

• Finish

  Raw

• Material

  .120 and .095 Wall DOM
