Maverick R Max - 4 Seat Radius Cage

Description

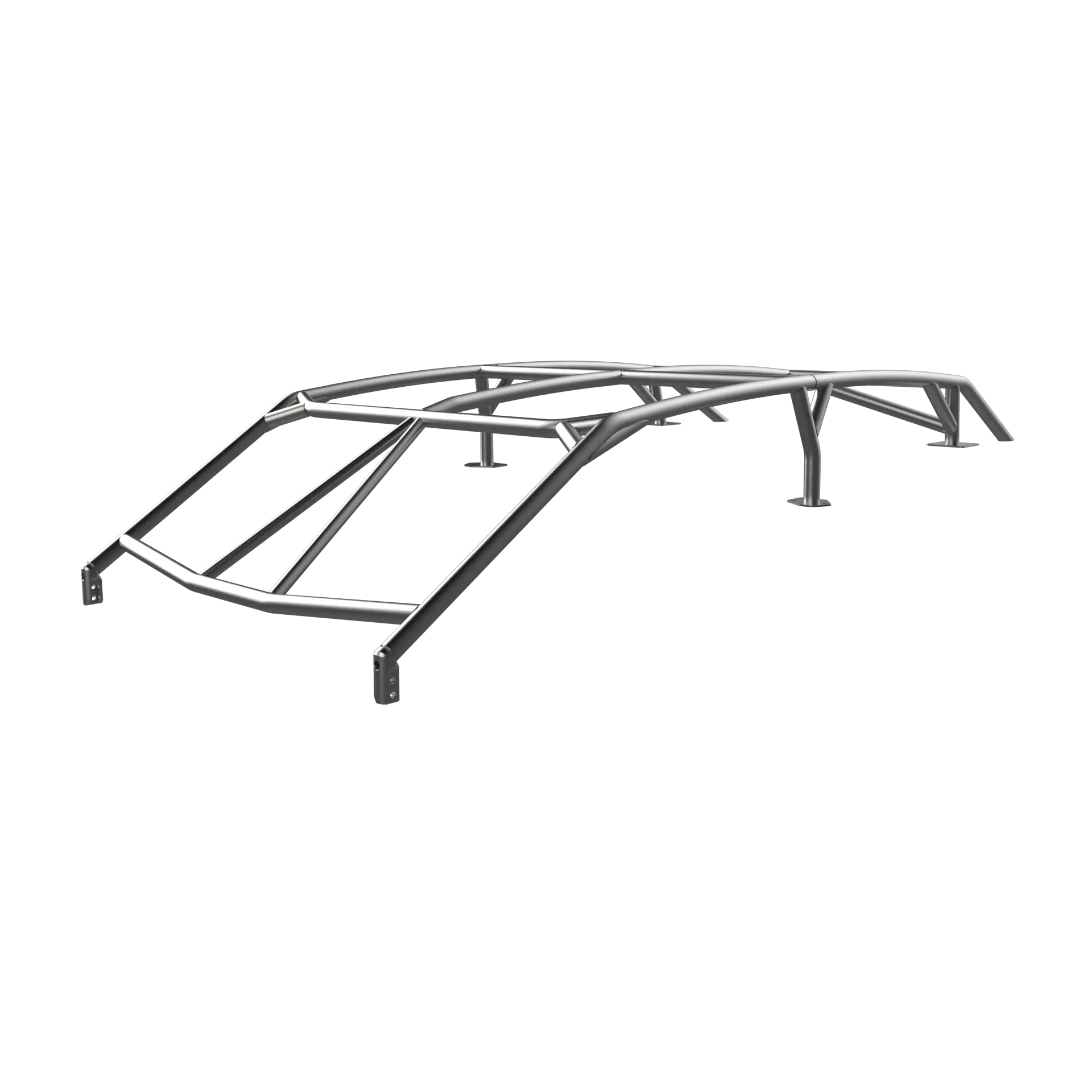

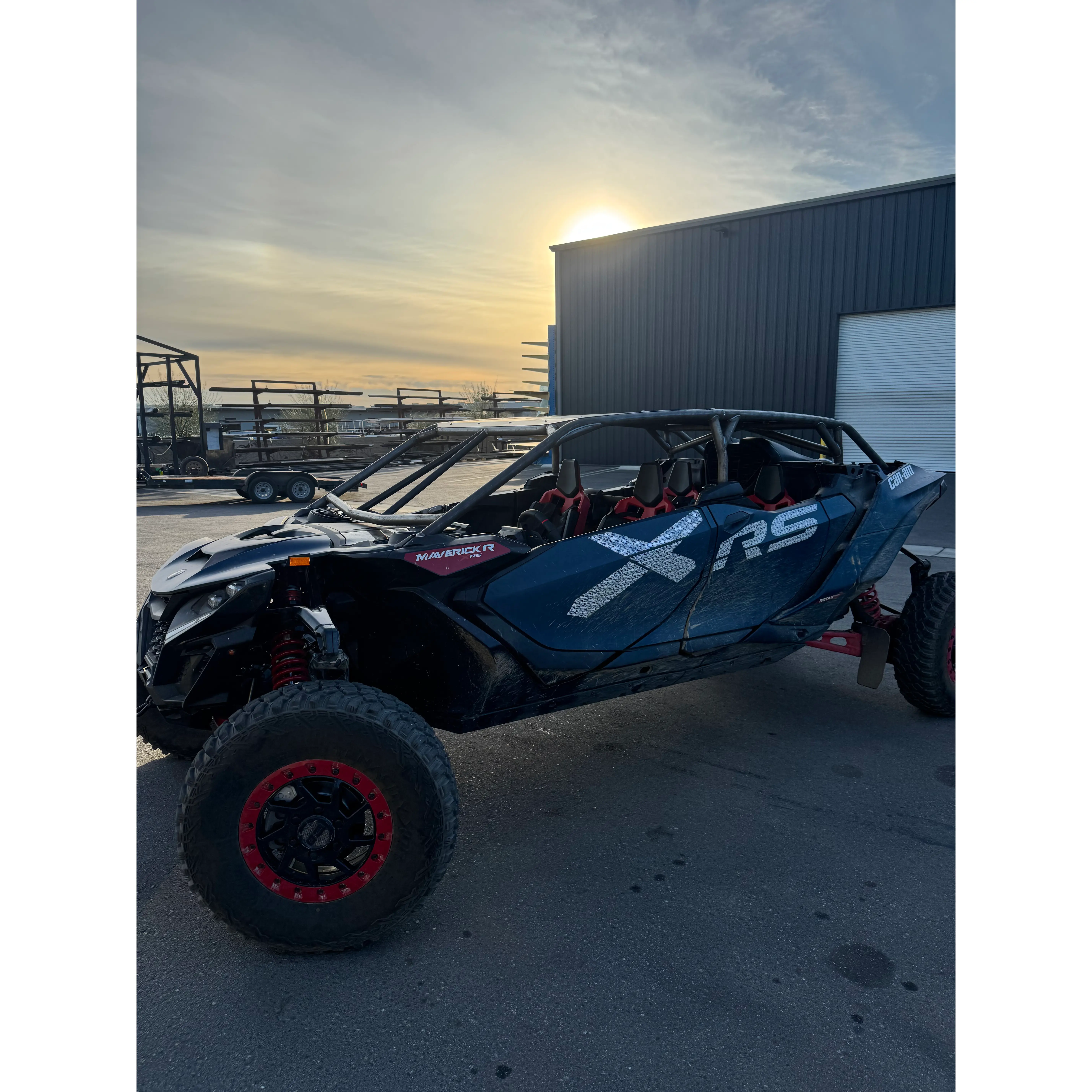

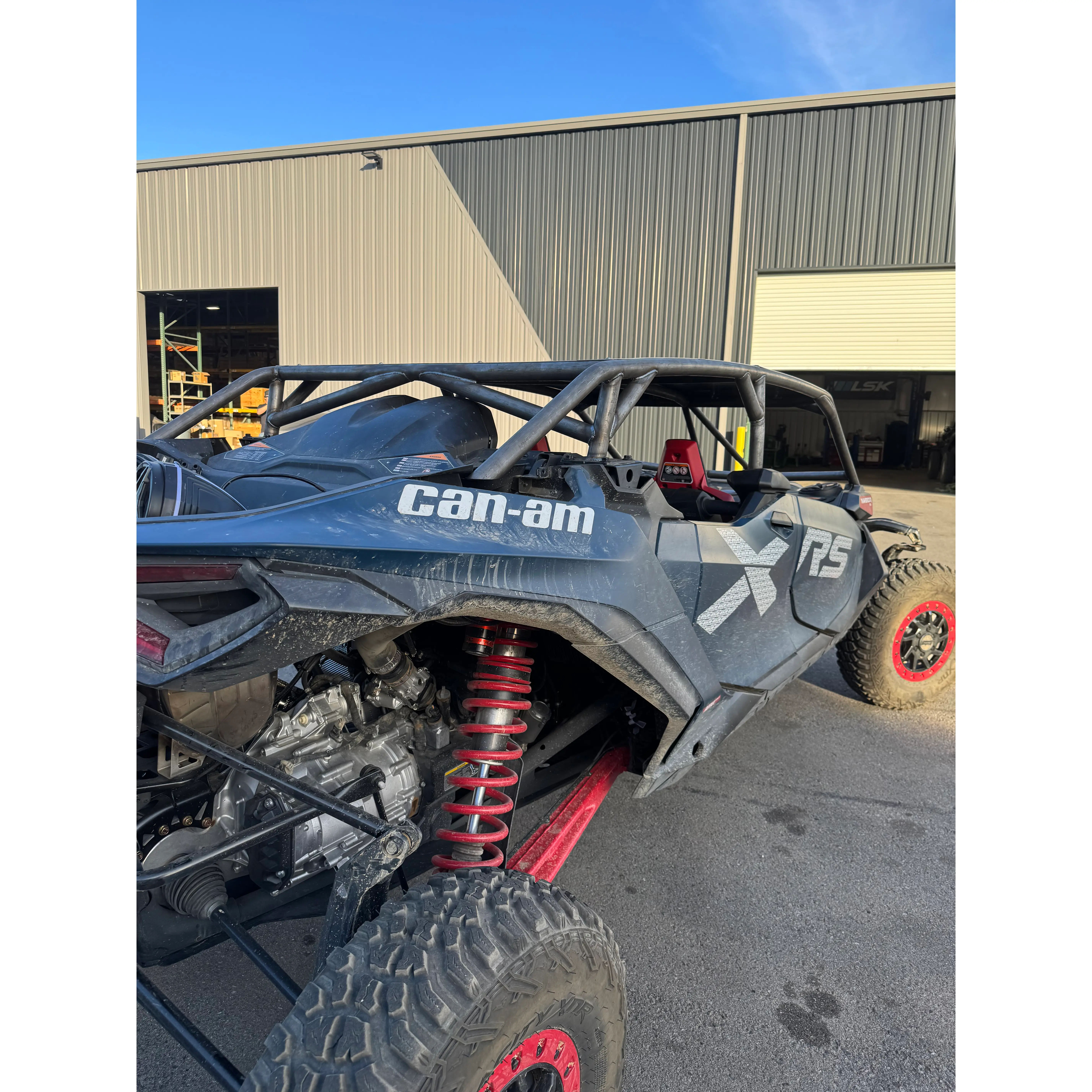

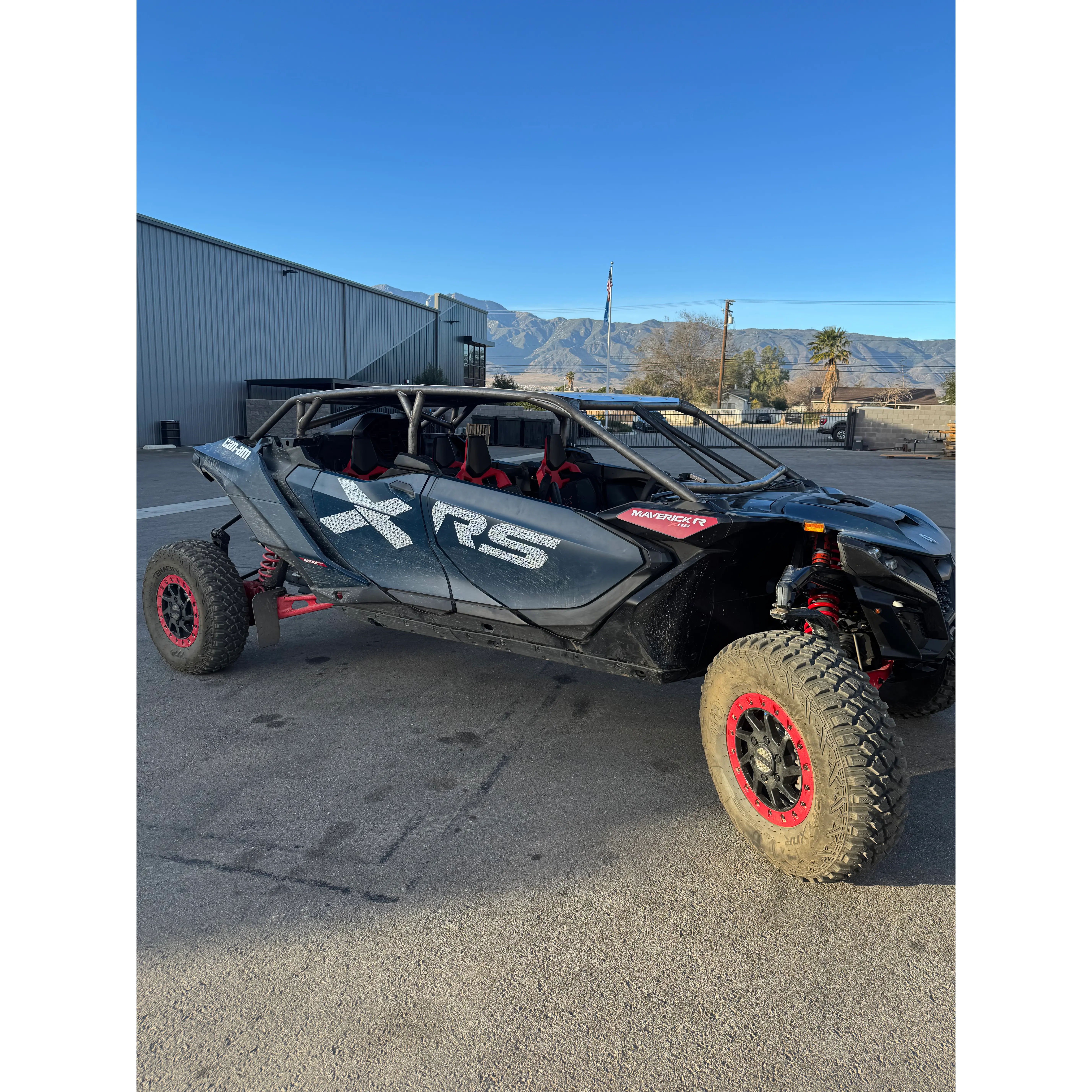

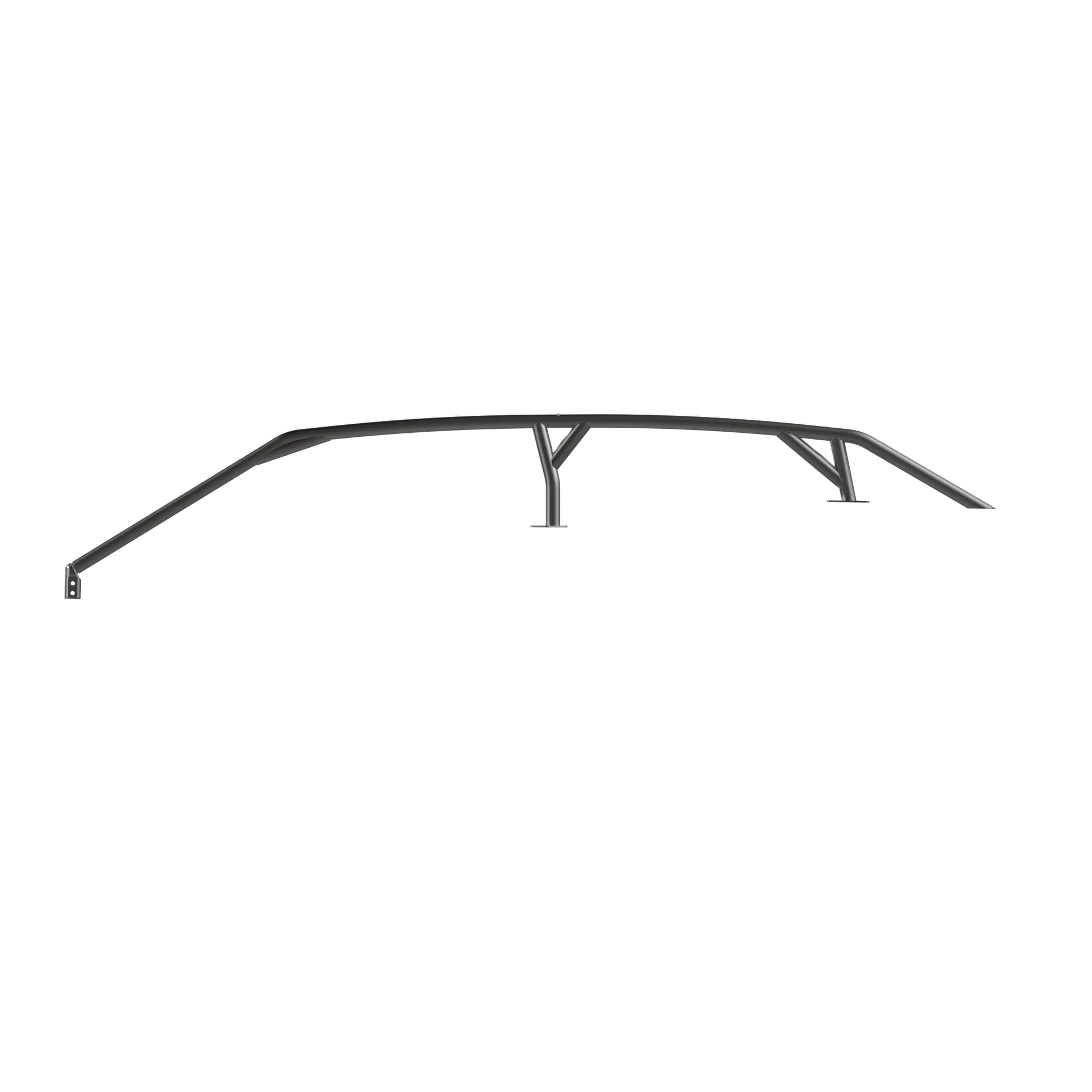

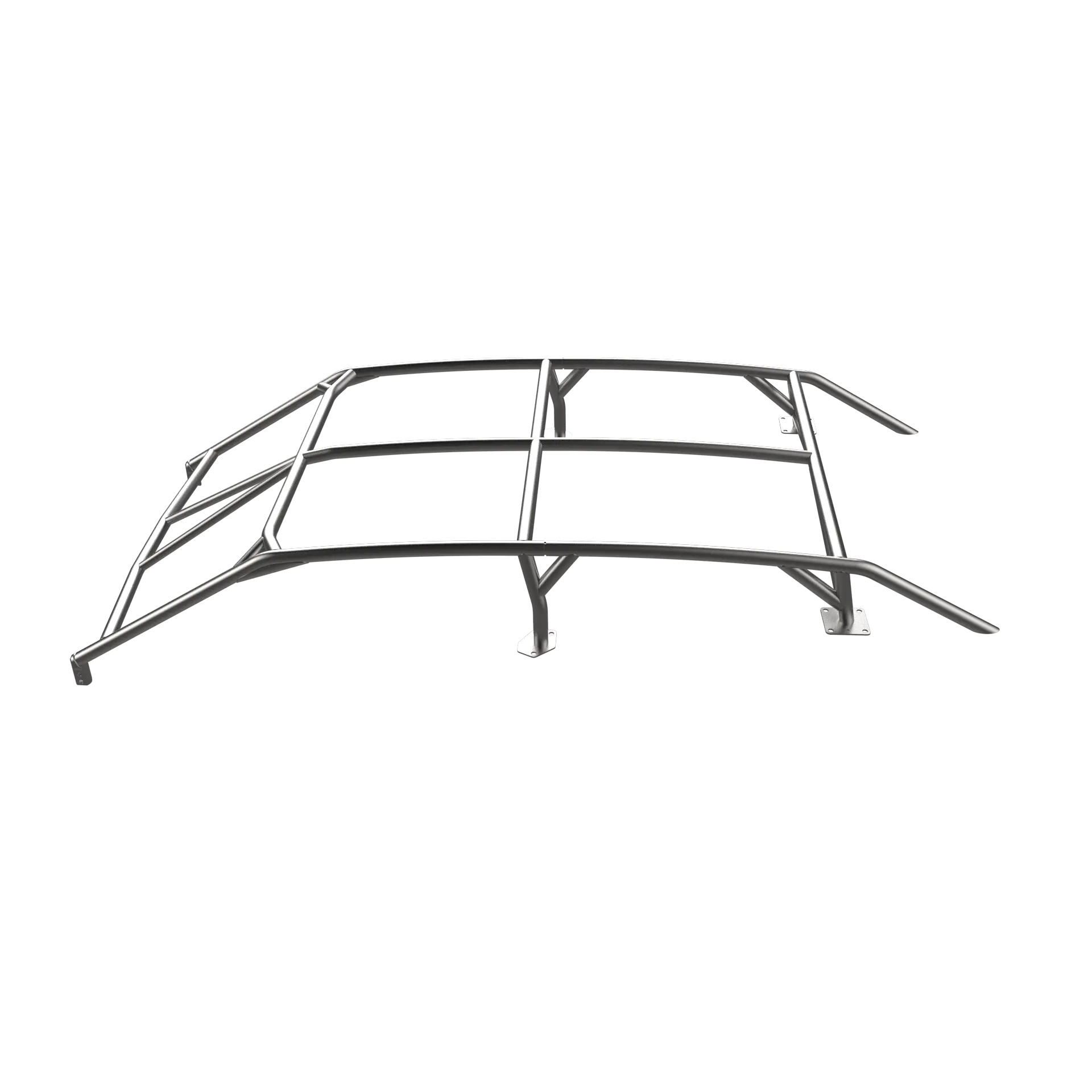

Introducing the LSK Maverick R Max Radius Cage, Built to withstand tough conditions, this cage features durable .120 wall DOM main tubes and .095″ DOM support tubing. The innovative design allows for easy assembly, requiring only standard MIG or TIG welding without the need for a specialized fixture. Simply install the included "A" Pillar Bungs and connector plates into the stock cage locations and assemble the cage directly on the vehicle. INCLUDES: - Laser-Cut Tube Pieces with Laser-Etched Part Numbers for Easy Identification - 1.75″ OD .120 Wall DOM Tubing for Main Hoops - 1.50″ OD .095 Wall DOM Tubing for Windshield Cross Bars -"A" Pillar Bungs, Mounting Plates and Hardware for Factory Landing Locations REQUIRES: - Welding: Once the cage is configured on the vehicle, welding is required to secure all components. UPGRADES: - Aluminum Roof: .06” Thick 2-Piece Roof with Small Visor Bend and Bead Rolled Joint. Complete with Weld-On Tabs and 1/4″ Grade 8 Hardware. NOTES: - A floor jack is required under the center of the vehicle during installation to "level out" the frame rails. Failure to do so may cause difficulty aligning the cage with the factory mounting locations.

Specifications

• Assembly

  Weld-It-Yourself

• Fininsh

  Raw

• Material

  .120 and .095 Wall DOM
