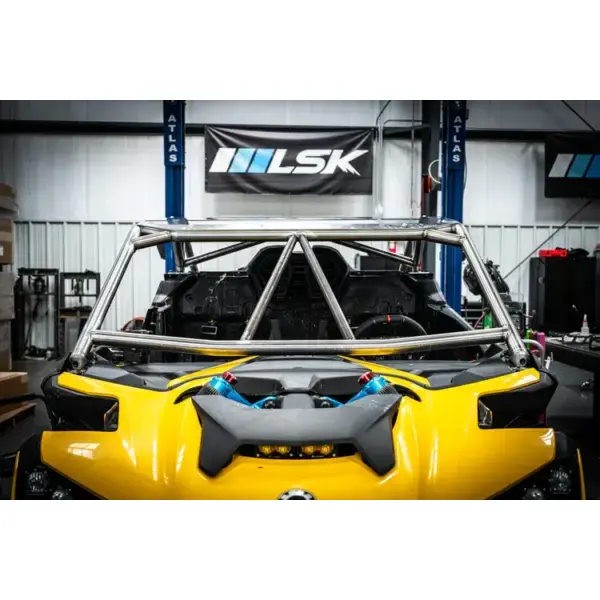

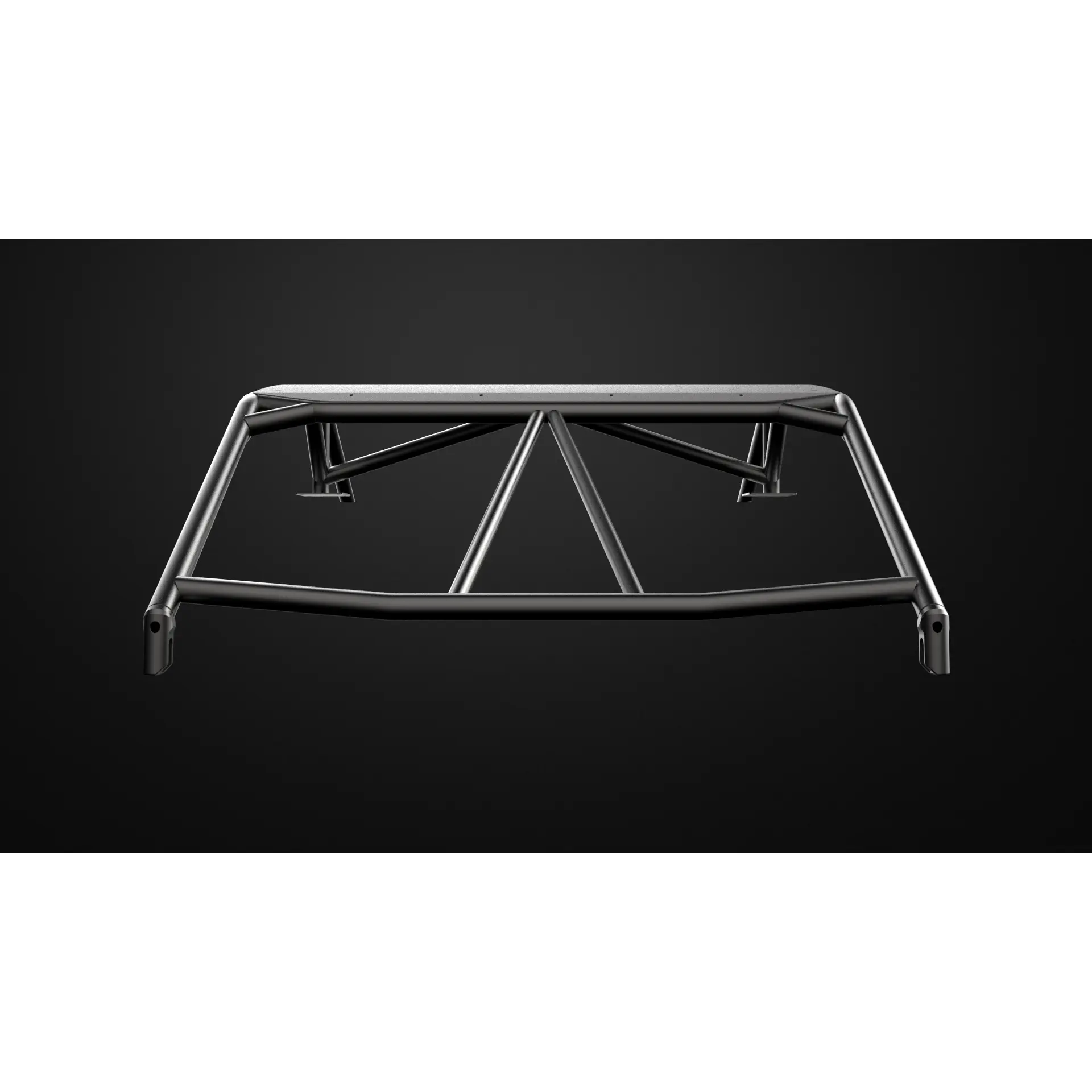

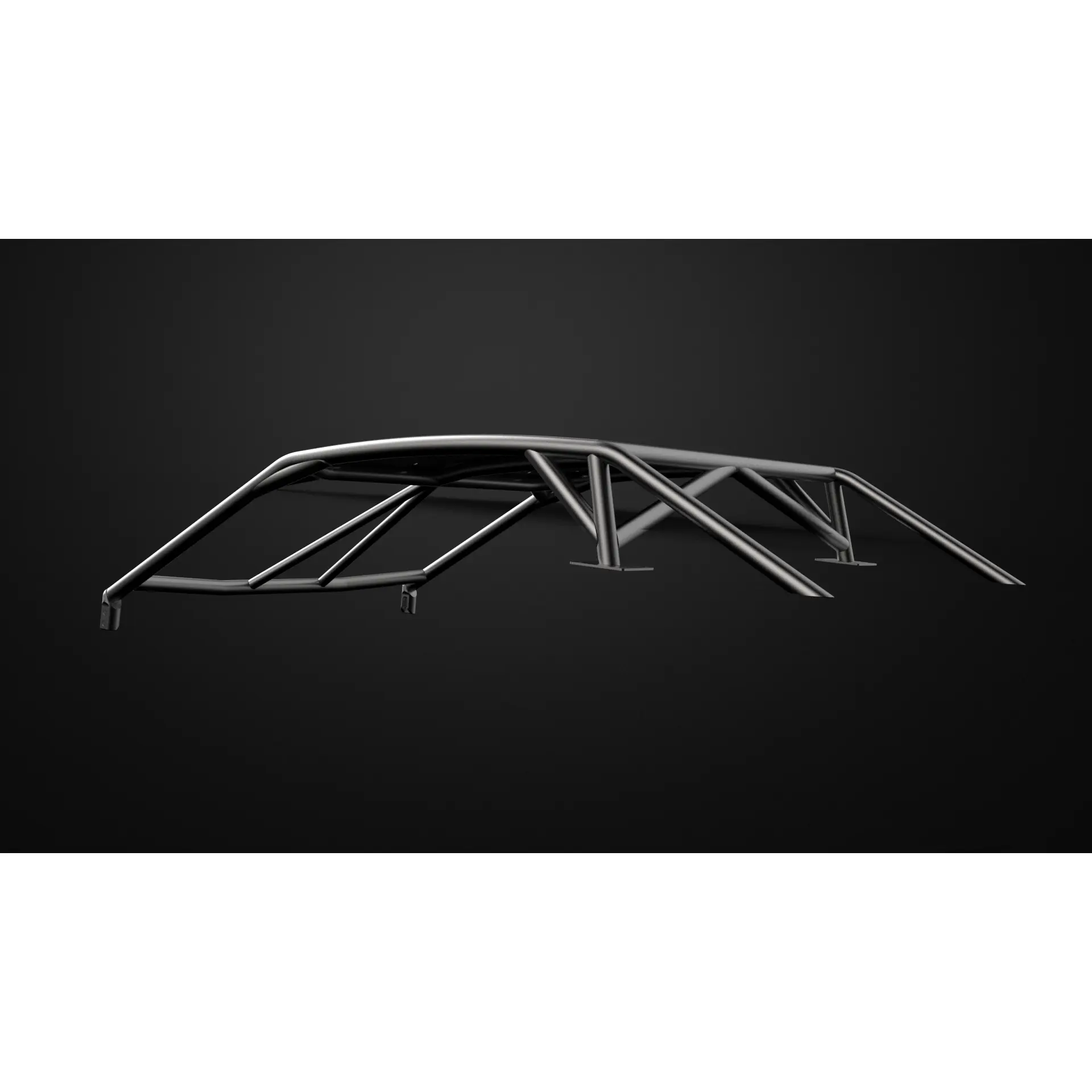

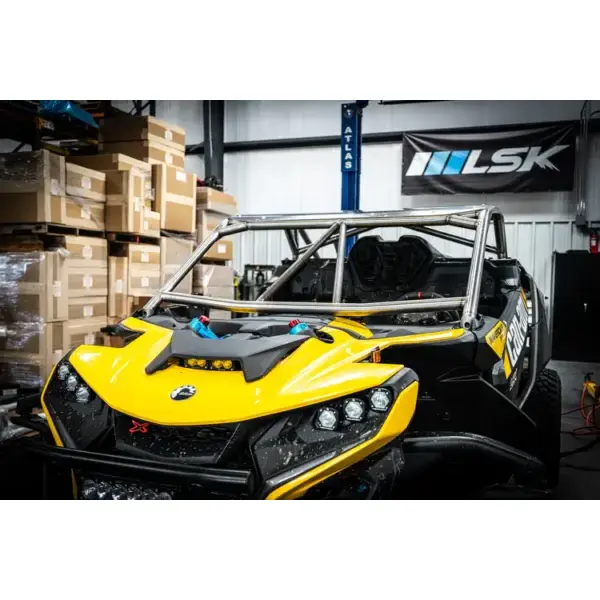

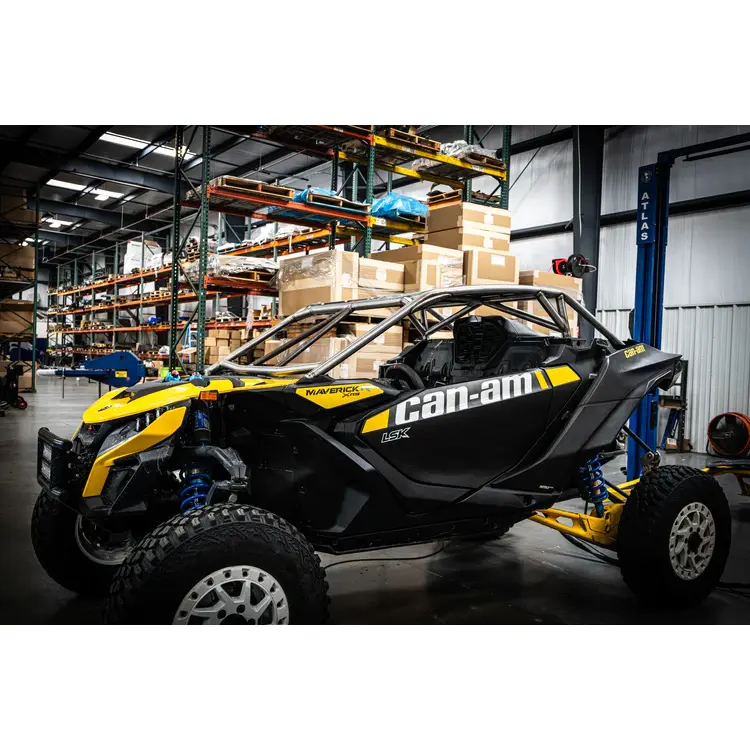

Maverick R - 2 Seat Radius Cage
LSK1212R
Optional Add-ons
Maverick R - 2 Seat Rock Sliders
+ $899.99
Maverick R - 2 Seat Radius Roof
+ $199.99
Maverick R Mojave Front Bumper
+ $649.99
Maverick R Hitch Pull Plate
+ $159.99
$826.69
1 in Stock
Ships in 2 days
Description
Introducing The Weld It Yourself RADIUS Cage Kit For The Can-Am Maverick R! This Cage Is Built With .095″ DOM Support Tubing That Can Be Either MIG Or TIG Welded Without The Use Of A Specialized Fixture – Just Install The Supplied Connector Plates To The Stock Cage Locations And Piece Together The Cage On The Vehicle. INCLUDES: Made 1.75″ & 1.25″ .095 Wall DOM Tubing Mounting Plates & Hardware To Mount In Factory Landing Locations REQUIRES: Welding – This Kit Can Be Welded Together Once Configured On The Vehicle UPGRADES: Aluminum Roof – .06 Thick Roof W/ Visor Bend – Complete With Weld On Tabs And 1/4″ Button Head Hardware NOTES: The Shipping Box Is Quite Large For This Particular Model, It Is Recommended To Not Lift The Box On Your Own
Specifications
Assembly
Weld-It-Yourself
Finish
Raw
Material
.095 Wall DOM
Fitment
Fits Can-Am Maverick R 2024+.
Model years: 2024, 2025, 2026
2-seat Maverick R.
Not sure it fits your build? Contact us with your year and model before ordering.
How this weld-it-yourself Can-Am Maverick R cage kit works
The kit arrives as laser-cut tube pieces in .095-wall DOM tubing. No fixture table is required: you install the supplied connectors at the stock cage locations and piece the cage together directly on the vehicle — the Can-Am Maverick R itself is the jig. Every joint can be MIG or TIG welded, whichever your shop runs. You keep the fab work, the finish choice, and the pride in your own build, and the kit ships at a fraction of the freight cost of an assembled cage.
Flat vs. radius: picking a cage style
This is the 2-seat radius cage. Radius cages sweep the roof line back for a lower, race-car profile; flat cages keep a level roof line and maximize interior headroom. Structurally both are built from the same DOM tubing — the choice is profile and headroom, and matching LSK aluminum roofs are available for each style.
Common Questions
Can I MIG weld this cage kit, or does it need TIG?
Either — the joints are designed to be MIG or TIG welded, whichever you or your fabricator prefer.
Do I need a jig or fixture table to build it?
No. The supplied connectors install at the stock cage locations and the tubes assemble directly on the Can-Am Maverick R — the vehicle acts as the fixture. Mock it up, tack, check, and weld it out.
What models does this cage fit?
It is built for the Can-Am Maverick R in the 2-seat configuration. Check the product options above or contact us with your exact model year before ordering.
