07-21 Tundra 2wd/4wd Race Kit
LSK1106
Optional Add-ons
$5249.99
Built to Order
Ships in 8 weeks
Description
KIT SHIPS RAW AND UNASSEMBLED DESCRIPTION: LSK Is Proud To Introduce The 07-21 Toyota Tundra 2wd/4wd Race Kit. Our Race Kit Uses A Set Of Custom Upper & Lower Control Arms, Fully Fabricated Spindle, Extended Heimed Tie Rod w/ Machined Steering Clevis And Plate Shock Tower W/ Integrated Upper Control Arm Mounts To Vastly Improve The On & Off Road Ride Quality. This Kit Is Best Suited For Those Who Use Their Vehicle As A Dedicated Off Road Rig Or One That Sees Occasional Street Use. PERFORMANCE SPECS: *Wheel Travel – Averages 17” Of Useable Wheel Travel (Depending On Limit Strap / Bump Stop / Shock Configuration) *Wheel Base: Extended 1.25″ Forward *Track Width: Extended 4.5″ On Each SideRecommended *Tire Size: 37″ *Recommended Wheel: 17 x 9″ w/4.5″ Backspacing (0mm Offset) INCLUDES: *Upper Arms *Lower Arms *Spindles *Tierods w/ Machined Steering Clevis *Shock Towers *Shock Hoops *Extended Brake Lines (Minimum 31″ Line End To End) *Grade 8 Hardware RQUIRES: *10″ 2.5″ Coilovers (NOT INCLUDED IN KIT ABOVE) *10″ 3.0″ Bypasses (NOT INCLUDED IN KIT ABOVE) *Welding Is Required – This Is Not A Bolt On System And Will Require Proficient Knowledge In Fabrication To Perform The Installation *Possible Extension Of Factory ABS Sensor Line (Depends On Wire Routing) *Bumpstops – Can Be Configured To Bump Off Of Lower Control Arm, Upper Control Arm Or Spindle Uniball Cup – Typically Recommend a 2.0″ x 2″ Stroke *Limit Straps – Recommend 10″ Limit Strap With Adjustable Clevis Kit (Can be Purchased In The Builders Components Section of Our Store) OPTIONAL UPGRADES: *RCV Extended Axles – RCV Ultimate Axles Come Pre-Assembled And Ready To Install With RCV’s Most Advanced Inner & Outer CV Assemblies. RCV’s Extended Axle Shafts Re-Use The Toyota OEM Inner And Outer CV Assemblies (New Assemblies Are Not Included, It Is Just Extended Axle Shafts) EST Fabrication – Expert Installation for LSK Long Travel Kits If you're looking for precision installation of your LSK Long Travel Kit, EST Fabrication offers highly skilled and professional services to ensure your suspension upgrade is executed with the utmost care and expertise. ✅ Specialized Installation for LSK Long Travel Kits ✅ Experienced Fabrication & Off-Road Suspension Professionals ✅ Reliable, Local, and Committed to Excellence 📍 EST Fabrication 28196 Via Seco St, Apple Valley, CA 92308, United States 📞 (909) 957-2503 IMPORTANT NOTES: *WHILE WEBSTORE MAY DISPLAY AN IN STOCK STATUS, WEBSTORE DOES NOT TRACK KIT INVENTORY IN REAL TIME – PLEASE CONTACT OUR SALES TEAM FOR CURRENT LEAD TIME ON KIT COMPONENTS *Coilovers And Bypasses Are Custom Ordered And Not Always Stocked Per Application. Please Email Our Sales Team For Current Lead Time On Shock Packages *Upper Control Arm: Use 7/8″-14 Rod Ends – Replacement Rod Ends Can Be Purchased Through Our Online Store Under Builders Components *Spindles: Use A 1.00″ FK Uniball (PN: WSSX16T) And Replacements Can Be Purchased Through Our Online Store Under Builders Components *Lower Control Arms: Use A 1.50″ FK Uniball (PN: COMH24T) & LSK 1.75″ Delrin Bushings. Replacements Can Be Purchased Through Our Online Store Under Builders Components *Permanent Frame Modification – Shock Tower Is Installed In Place Of Factory Shock & Upper Control Arm Mounts *If You Or Your Installer Have Any Questions Please Reach Out To Our Sales Team At (909)-305-4824 Or Email orders@LSKSuspension.com
Specifications
Recommended Tire Size
37″
Recommended Wheel
17 x 9″ w/4.5″ Backspacing (0mm Offset)
Track Width
Extended 4.5″ On Each Side
Wheel Base
Extended 1.25″ Forward
Wheel Travel
Averages 17” Of Useable Wheel Travel
Fitment
Fits Toyota Tundra 2007–2021.
Model years: 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021
Not sure it fits your build? Contact us with your year and model before ordering.
What this Toyota Tundra race kit does
A long travel kit swaps the factory front control arms, spindles, and steering for longer, stronger parts so the suspension can use far more wheel travel than stock. On this Toyota Tundra kit that averages 17 inches of usable wheel travel, moves the wheelbase 1.25 inches forward, and widens the track 4.5 inches per side. The catalog rates this one for a dedicated off-road rig, or a truck that sees occasional street use — the harder-core end of the range.
Tires, wheels, and stance
The kit is built around a 17x9 wheel with 4.5 inches of backspacing. With 4.5 inches of extra track per side, plan on fender clearance work at full travel like any wide long travel truck. An alignment after install is part of the job.

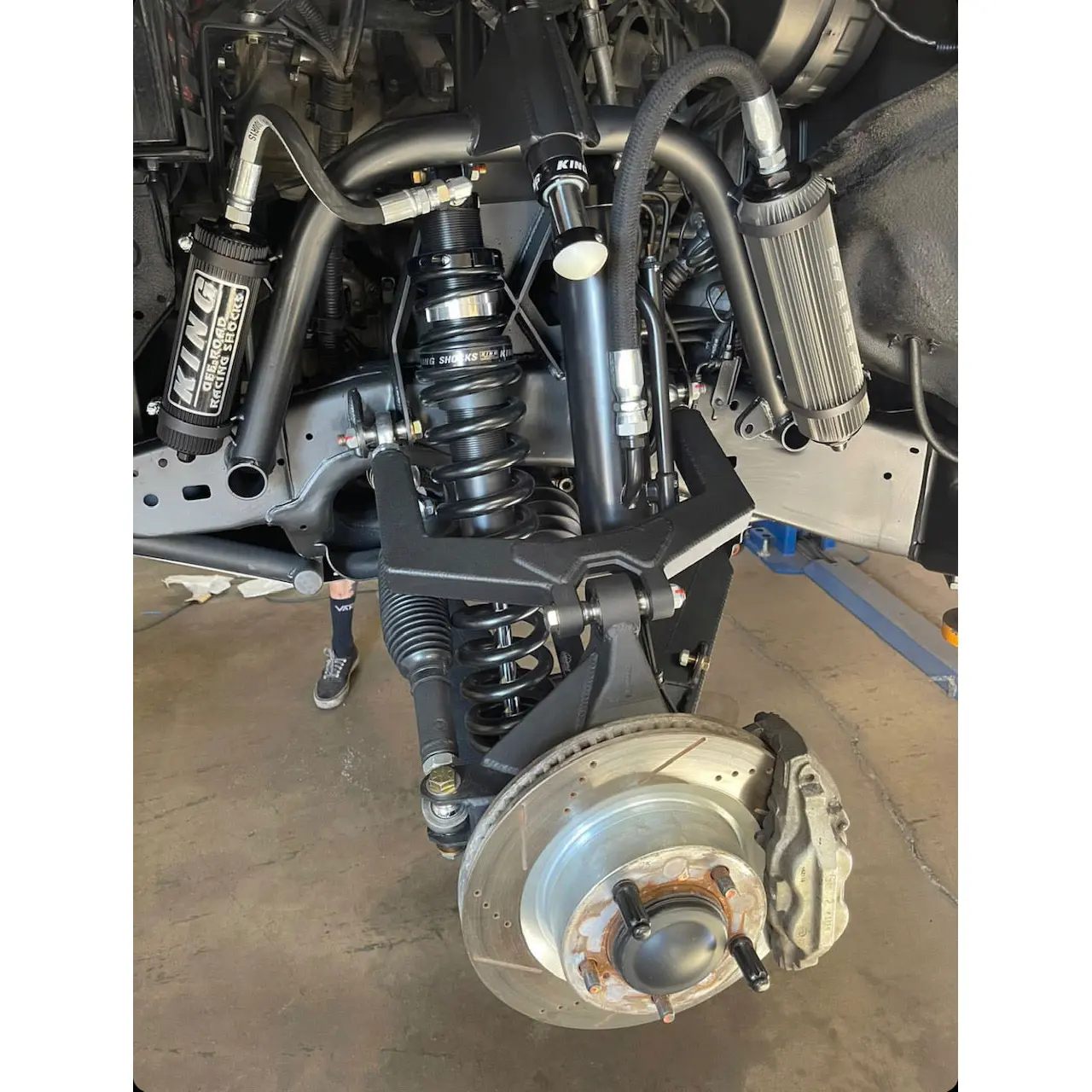

What the install involves
This is not a bolt-on system. Welding is required, and the catalog is explicit that the install needs proficient fabrication knowledge — plan on a shop unless that is your own skill set. The catalog also flags permanent frame modification — the shock tower goes in where the factory shock and upper arm mounts were. Kits ship raw and unassembled, so finish and assembly are yours to handle.

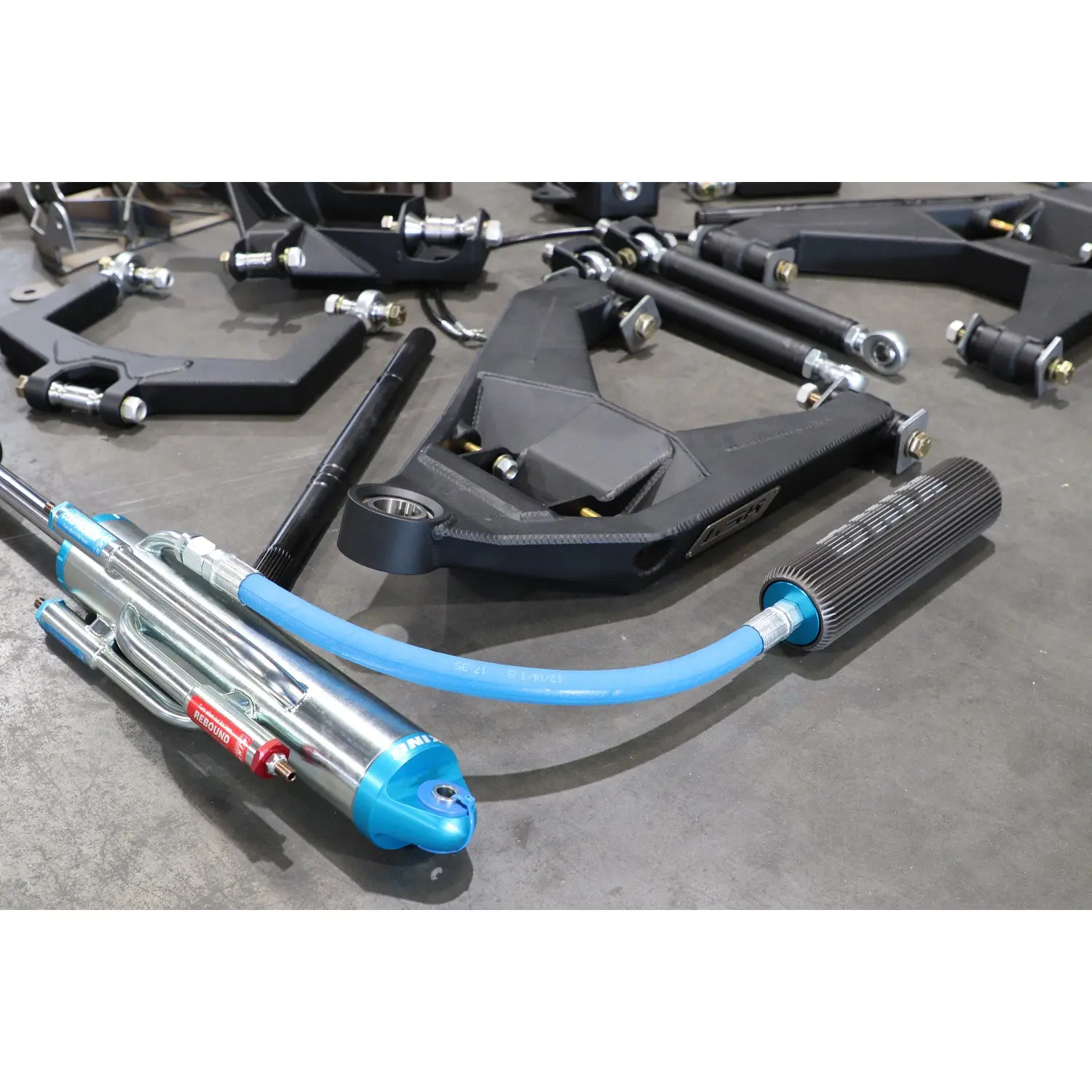

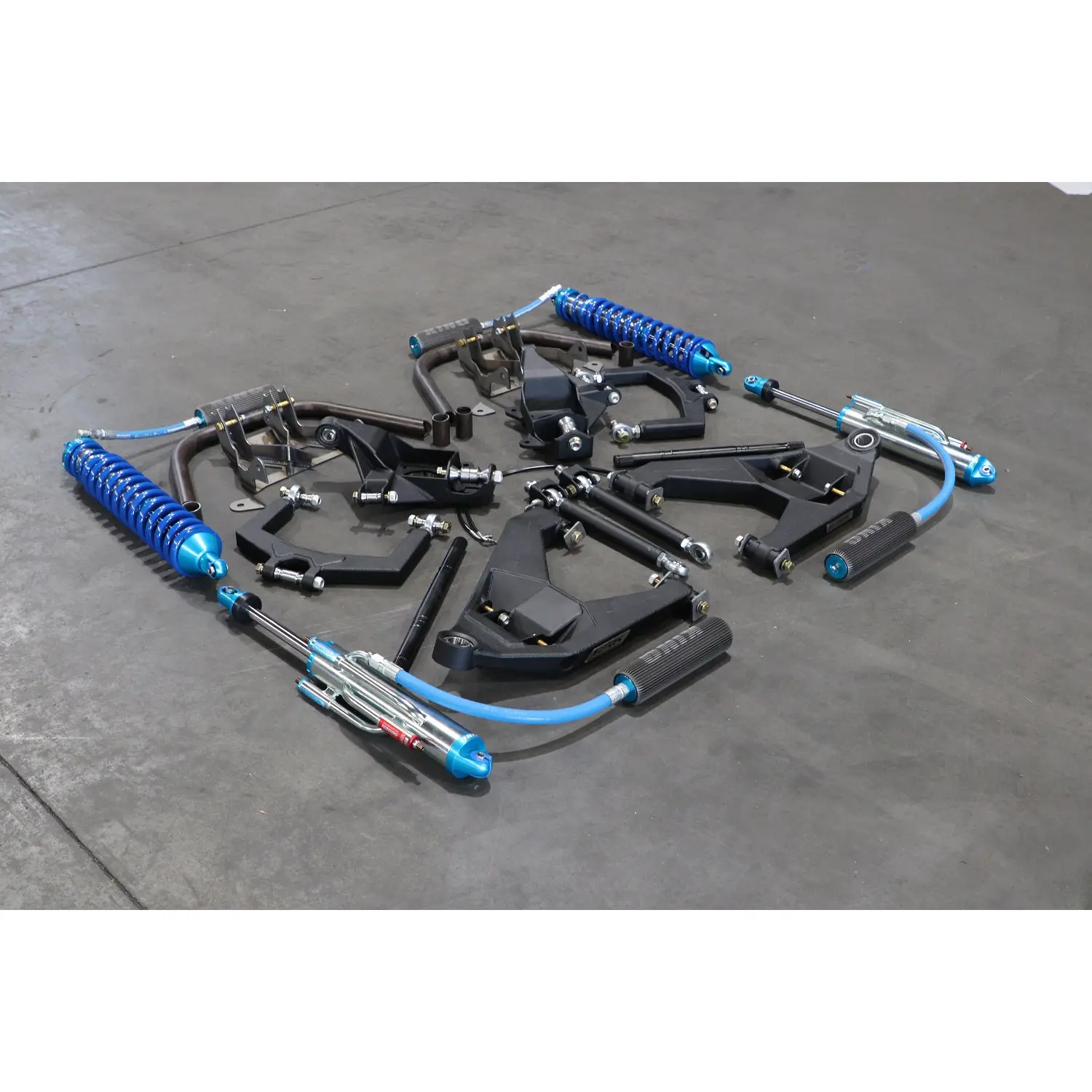

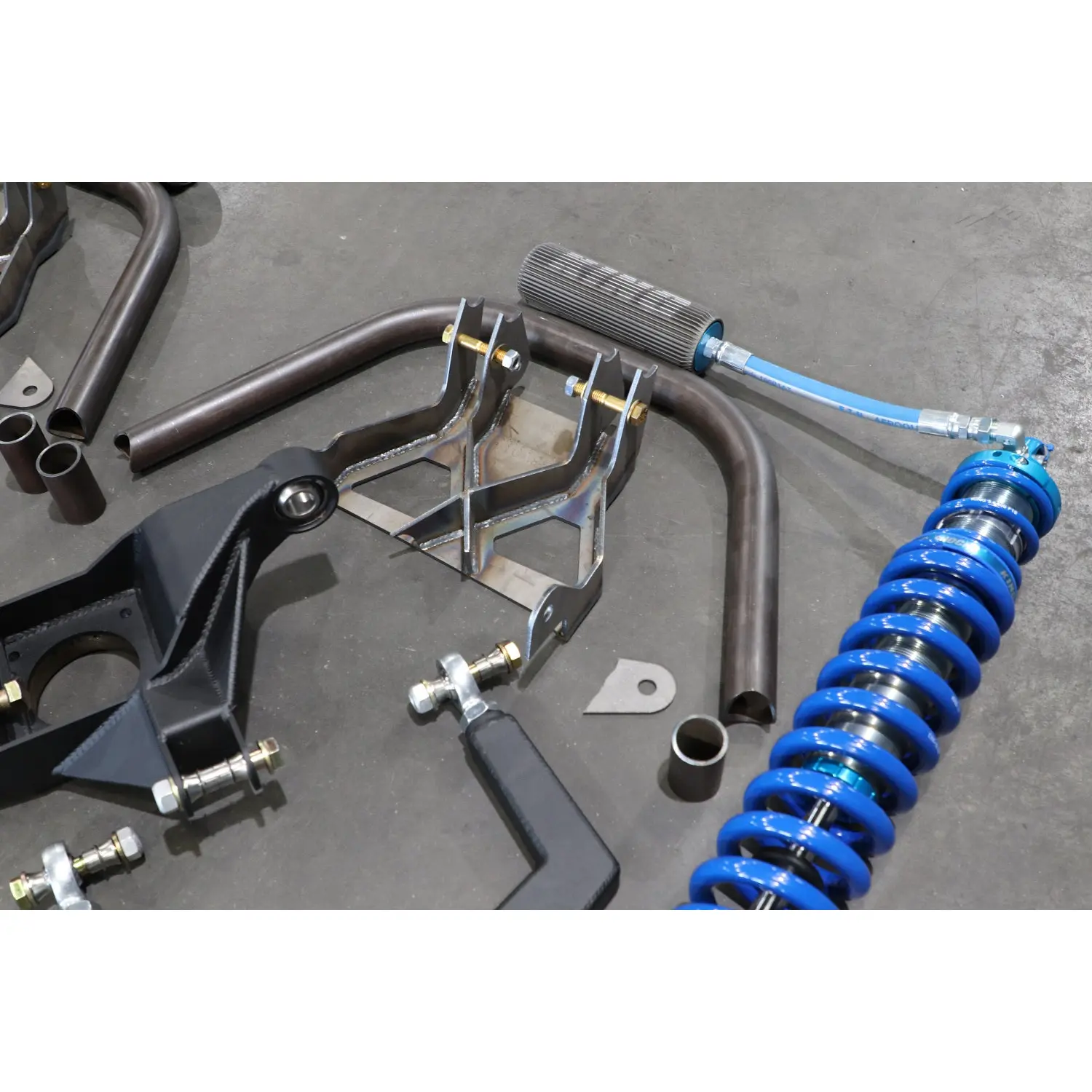

What's in the kit — and what you'll still need
The kit includes upper arms, lower arms, spindles, tierods w/ machined steering clevis, shock towers, shock hoops, extended brake lines (minimum 31″ line end to end), grade 8 hardware. You still need 10-inch stroke 2.5-inch coilovers (not included in the kit) and 10-inch stroke 3.0-inch bypasses (not included). Shock packages are custom ordered per application, so email the sales team for current lead time rather than assuming stock. Limit straps and bump stops get set up to suit your build.
Common Questions
What tire and wheel size does this Toyota Tundra kit run?
LSK recommends the wheel spec listed in the specs above: a 17x9 wheel with 4.5 inches of backspacing. Other combinations can work, but that is the setup the geometry was designed around.
Does installing this kit require welding?
This is not a bolt-on system. Welding is required, and the catalog is explicit that the install needs proficient fabrication knowledge — plan on a shop unless that is your own skill set.
Does the kit come with shocks?
No. It is designed around 10-inch stroke 2.5-inch coilovers (not included in the kit) and 10-inch stroke 3.0-inch bypasses (not included), ordered separately so they can be valved for your truck's weight and how you drive it.
How much wheel travel does this Toyota Tundra kit give?
It averages 17 inches of usable wheel travel depending on limit strap, bump stop, and shock configuration.
Is this kit in stock?
The webstore does not track kit inventory in real time, so an in-stock badge is not a ship date. Contact the sales team for the current lead time before you plan a build around it.
Which Toyota Tundra models does this kit fit?
It is built for the Toyota Tundra, 07-21 model years, in the configuration named in this product's title. If you are unsure about your year or drivetrain, contact us before ordering.
