RSMX-12T Right Hand Thread Rod End (7/8" Thread 3/4" Hole)

Description

*3-PIECE CONSTRUCTION *HIGH STRENGTH – HEAVY DUTY SHANK *PTFE LINER AVAILABLE *STUDS AVAILABLE *OPTIONAL LUBRICATION FITTING AVAILABLE *MALE ROD END LOAD RATINGS BASED ON NO LUBRICATION FITTING *FOR LOAD RATING WITH LUBRICATOR, PLEASE CONTACT FK ENGINEERING BALL: -52100 STEEL -Rc: 56 MIN -HARD CHROME PLATED BODY: -ALLOY STEEL -HEAT TREATED -ZINC PLATED -CHROMATE TREATED RACE: -ALLOY STEEL -HEAT TREATED -ZINC PLATED -CHROMATE TREATED * RACE IS 17-4PH STAINLESS STEEL, HEAT TREATED / BALL IS 440C STAINLESS STEEL OR 52100 STEEL (HEAT TREATED) – MANUFACTURER’S OPTION

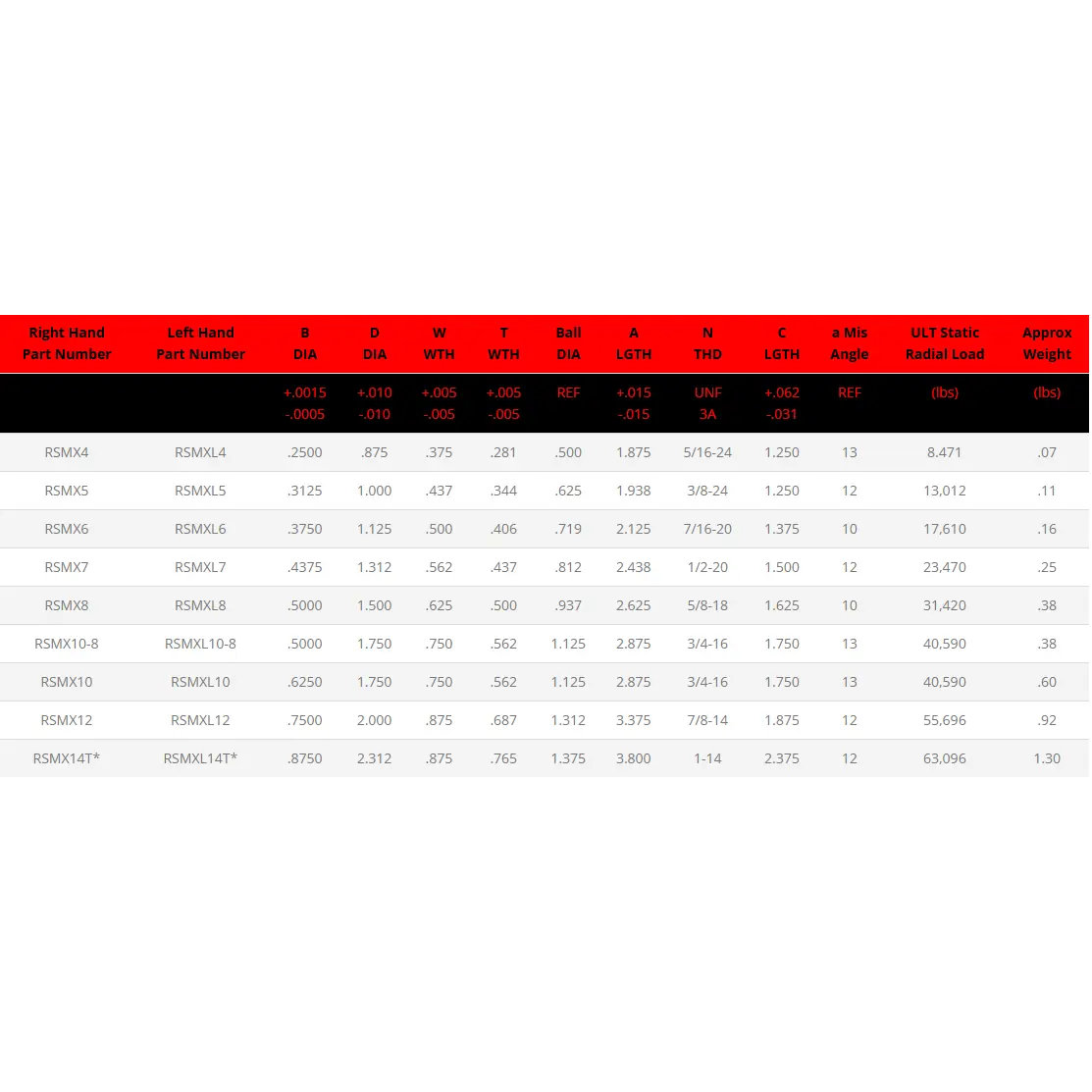

Specifications

• A-Length

  3.375

• Approx Weigth

  .92

• Ball-Diameter

  1.312

• B-Diameter

  .75

• C-Length

  1.875

• D-Diameter

  2.0

• N-Thread

  7/8-14

• T-Width

  .687

• ULT Static Radial Load

  55,696

• W-Width

  .875
