PRO R - 2 Seat Radius Cage

Description

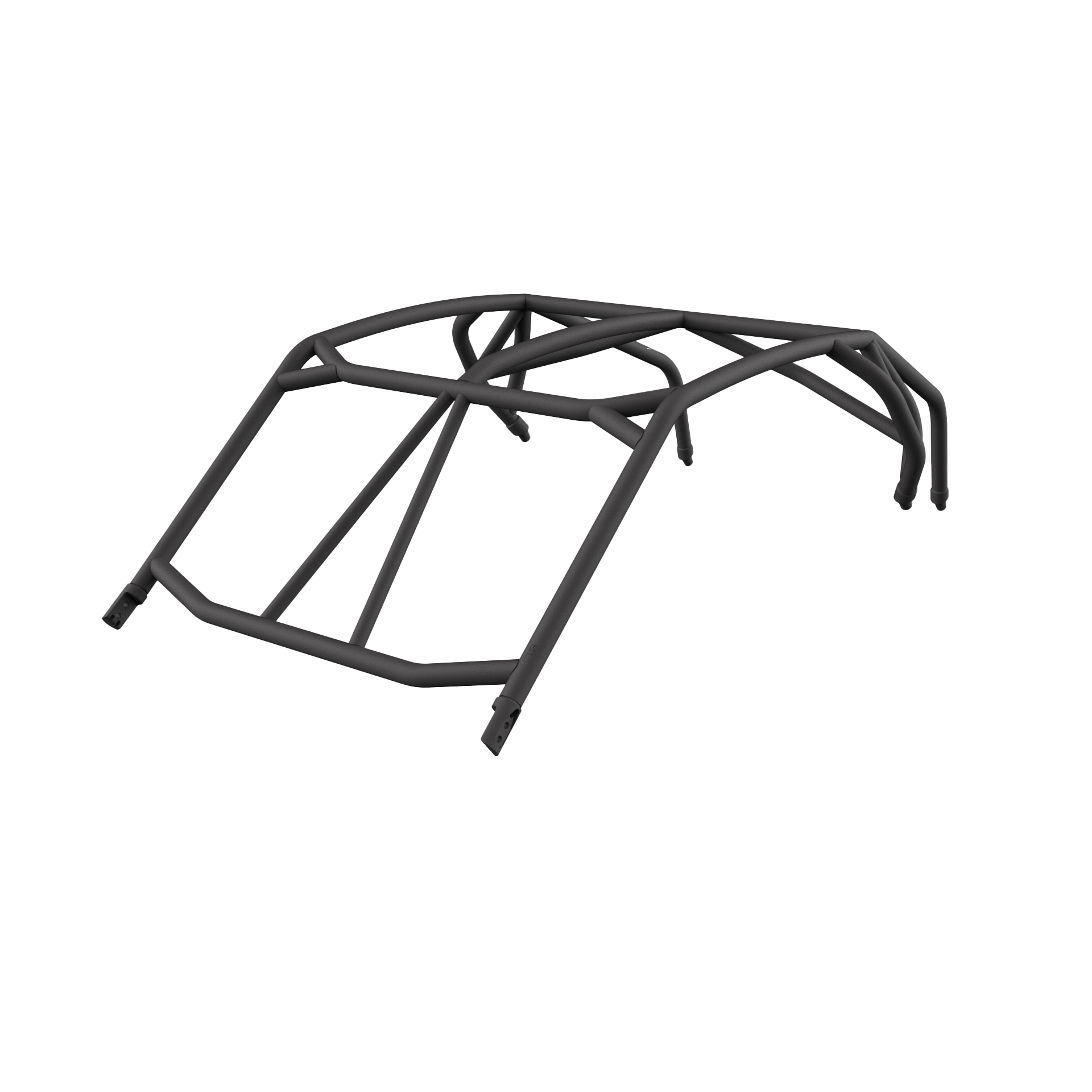

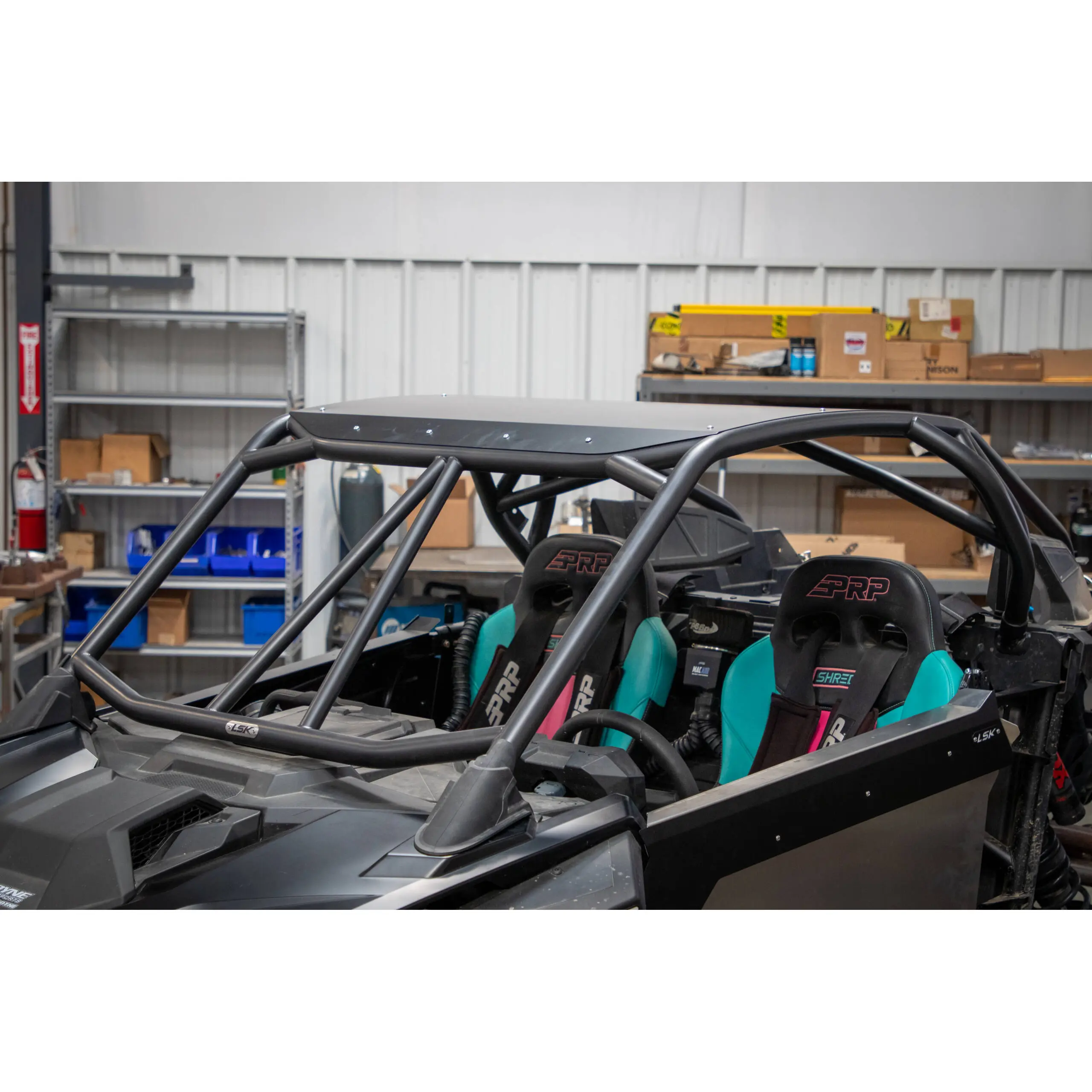

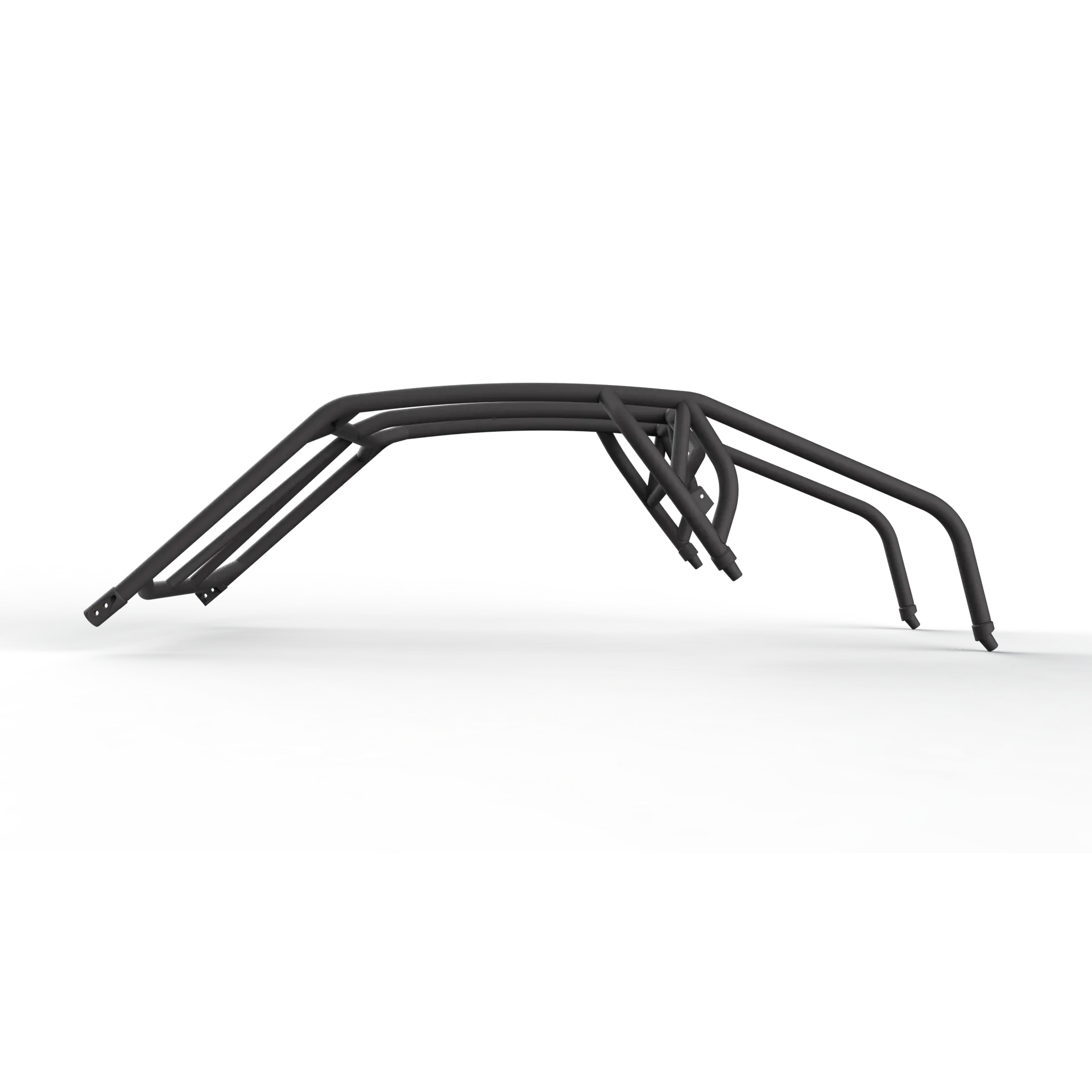

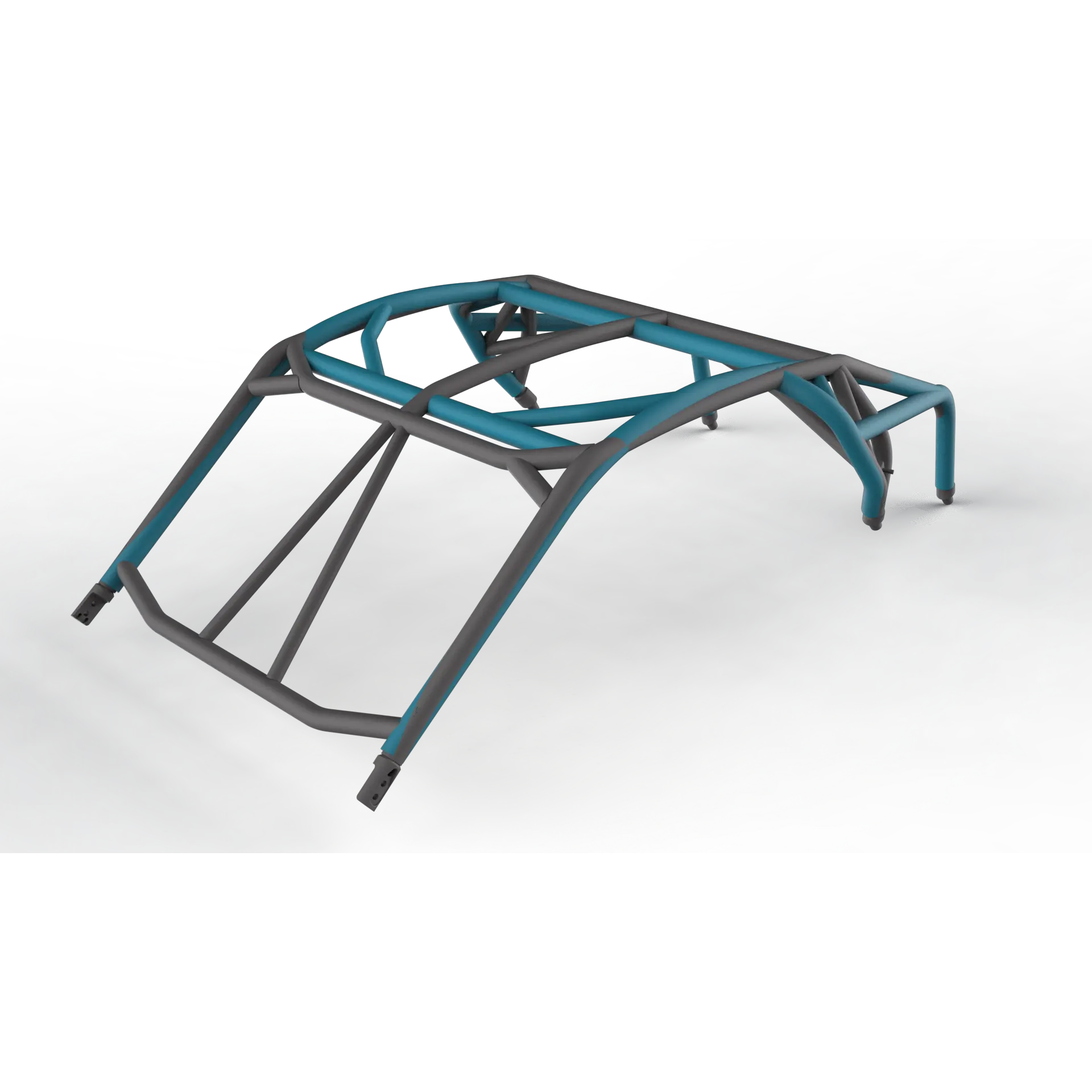

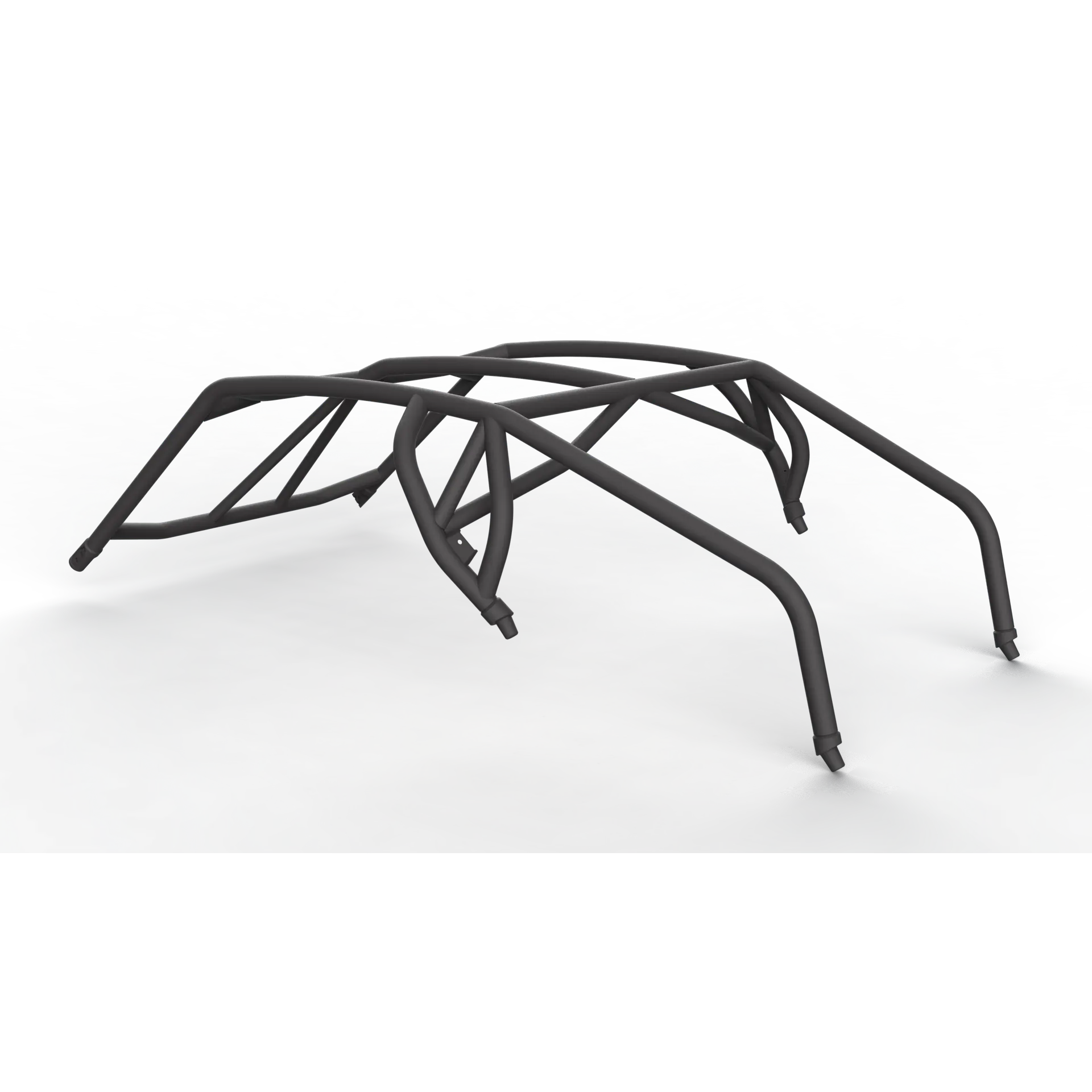

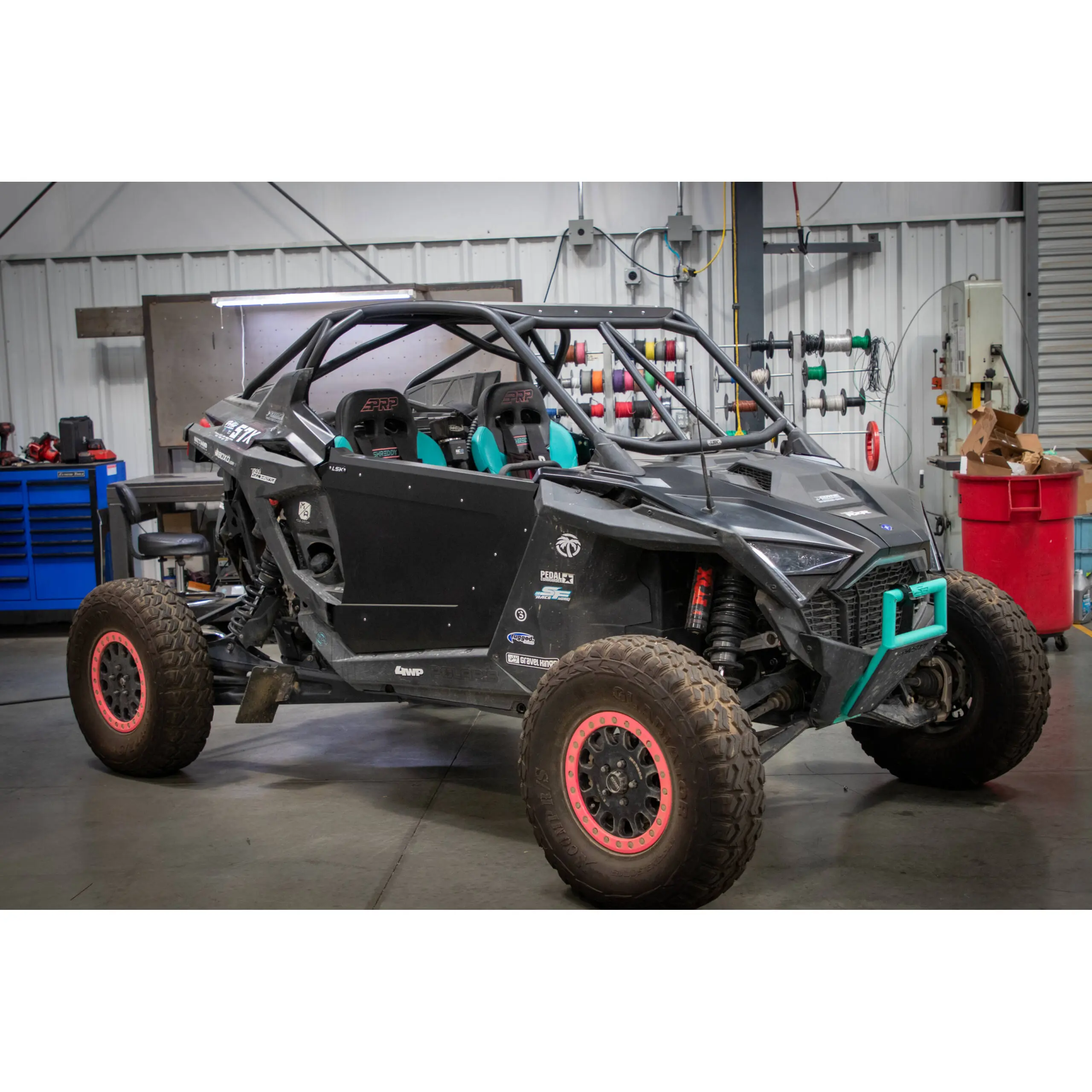

Introducing The Weld It Yourself RADIUS Cage Kit For Your 2022+ Polaris PRO R 2 Seater! This Cage Is Built With .120″ & .095″ DOM Tubing That Can Be Either MIG Or TIG Welded Without The Use Of A Specialized Fixture – Just Install The Supplied Connectors To The Stock Cage Locations And Piece Together The Cage On The Vehicle. INCLUDES: 18 Laser Cut Tube Pieces With Laser Etched Part Numbers On Each Component 1.75″ OD .120 Wall DOM Tubing For The Main Bars and B-Pillar Tubes 1.75″ OD .095 Wall DOM Tubing For Remainder 1.75” Tubes 1.25″ OD .095 Wall DOM Tubing For Windshield Cross Bars (2) A Pillar, (2) B Pillar & (2) C Pillar Bungs To Attach To OEM Cage Location REQUIRES: Welding – This Kit Can Be Welded Together Once Configured On The Vehicle UPGRADES: Aluminum Roof – .06 Thick Roof W/ Small Visor Bend – Complete With Weld On Tabs And 1/4″ Grade 8 Hardware Windshield Kit – Complete Bolt On Windshield Kit With .09″ Powdercoated Black Aluminum Shroud With DOT Glass And Adjustable Air Vents NOTES: This Cage Sits In Similar Fashion To OEM Cage, See Render With LSK Cage (Grey) Compared To OEM Cage (Blue) Aluminum Roof Upgrade Is A Single Piece Of .06 Aluminum With A Slight Visor Bend Up Front To Match The Cage Radius Must Use A Floor Jack Under Center Of Vehicle During Installation To “Level Out” The Frame Rails – Failure To Do So Will Make Aligning The Cage At The Factory Locations Difficult

Specifications

• Assembly

  Weld-It-Yourself

• Finish

  Raw

• Material

  .120 and .095 Wall DOM
