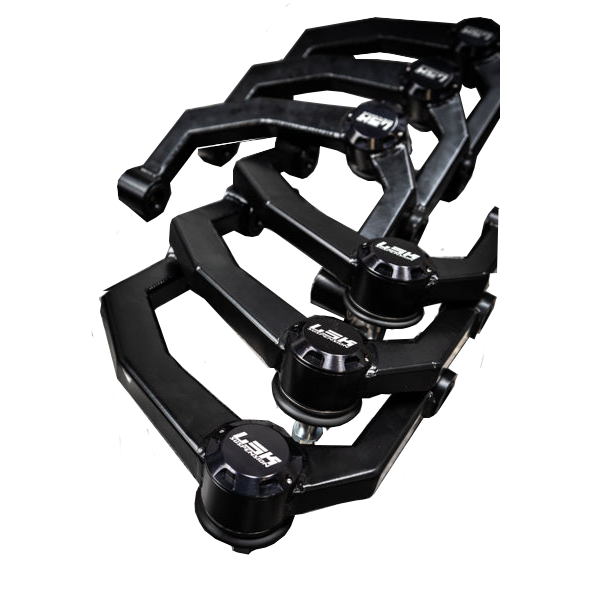

04-20 F150 Upper Control Arms

Description

LSK Is Proud To Introduce The 2004-2020 Ford F150 Upper Control Arms Replacements. Our Upper Control Arms Utilize A 1.25″ FK Uniball In A Fully Sealed Outer Pivot With Our Proprietary Rubber Boot And Aluminum Cover Cap. Inner Pivots Are Fully Sealed Assemblies As Well With 3/4″ FK Uniballs And 17-4 Stainless Misalignments For A Smooth And Quiet Ride In Any Terrain. INCLUDES: Upper Arm Assemblies 1/16″ Allen Keys For Installation REQUIRES: No Requirements – This Is A Bolt On Components And Reuses The Factory UCA Bolts For Assembly OPTIONAL UPGRADES: Finish – Powdercoated Black IMPORTANT NOTES: -Fits 04-20 2wd & 4wd Models -Track Width: Stock Track Width -FITS w/ OEM Replacement Coilovers -Wheel Travel: Allows More Droop Over Factory But Ultimately Limited By OEM Replacement Coilovers -Outer Pivot: FK 1.25″ Uniball – PN: COM20T – Replacements Can Be Found In Our Builders Components Category -LSK EXCLUSIVE “STAGE 2” UPGRADE: A Fully Sealed 1.25″ FK Uniball Outer Pivot With Our Proprietary Rubber Boot And Aluminum Cover Cap along 3/4″ FK Uniballs on Inner Pivots With Sealed Uniball Cups – No Squeaky Polyurethane Bushings To Grease And Uniballs Are Protected From The Elements For Extended Life -If You Or Your Installer Have Any Questions Please Reach Out To Our Sales Team At (909)-305-4824 Or Email Info@LSKSuspension.com

Specifications

• Inner Pivot

  FK 3/4" Uniball - PN: COM12T

• Material

  DOM Steel Plate and Chromoly Uniball Cups

• Outer Pivot

  FK 1.25″ Uniball – PN: COM20T

• Track Width

  Stock Track Width

• Wheel Travel

  Allows More Droop Over Factory But Ultimately Limited By OEM Replacement Coilovers

Fitment

Fits Ford F-150 2004–2020.

Model years: 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020

Not sure it fits your build? Contact us with your year and model before ordering.

Why upgrade the F-150's upper control arms

On a lifted or hard-driven 2004-2020 Ford F-150, the factory upper arm's sealed ball joint binds at steeper angles and cannot be rebuilt when it wears. These arms replace it with a 1.25-inch FK uniball in a fully sealed outer pivot — our proprietary rubber boot and aluminum cover cap keep dirt and water out — plus fully sealed 3/4-inch FK uniball inner pivots with 17-4 stainless misalignment spacers for a smooth, quiet ride in any terrain.

Installation

Completely bolt-on: the arms reuse the factory UCA bolts — hand tools, no welding — and the install allen keys are included. They work at stock height or lifted with factory or aftermarket coilovers. Budget an alignment after install, as with any control arm change.
