05+ Tacoma Upper Control Arms
LSK1130
Optional Add-ons
TACOMA 05+ (6 LUG) REAR 2.5 DIA. REMOTE RESERVOIR SHOCK W/ ADJUSTER (PAIR)
+ $1469.65
TACOMA 05+ (6 LUG) FRONT 2.5 DIA. REMOTE RESERVOIR COIL-OVER W/ ADJUSTER (PAIR)
+ $2172.65
TACOMA 05+ (6 LUG) FRONT 2.5 DIA. REMOTE RESERVOIR COIL-OVER (PAIR)
+ $1805.99
Tacoma Factory Spindle Gusset Kit
+ $89.99
TACOMA 05+ (6 LUG) REAR 2.5 DIA. REMOTE RESERVOIR SHOCK (PAIR)
+ $1102.95
$849.99
Built to Order
Ships in 5 days
Description

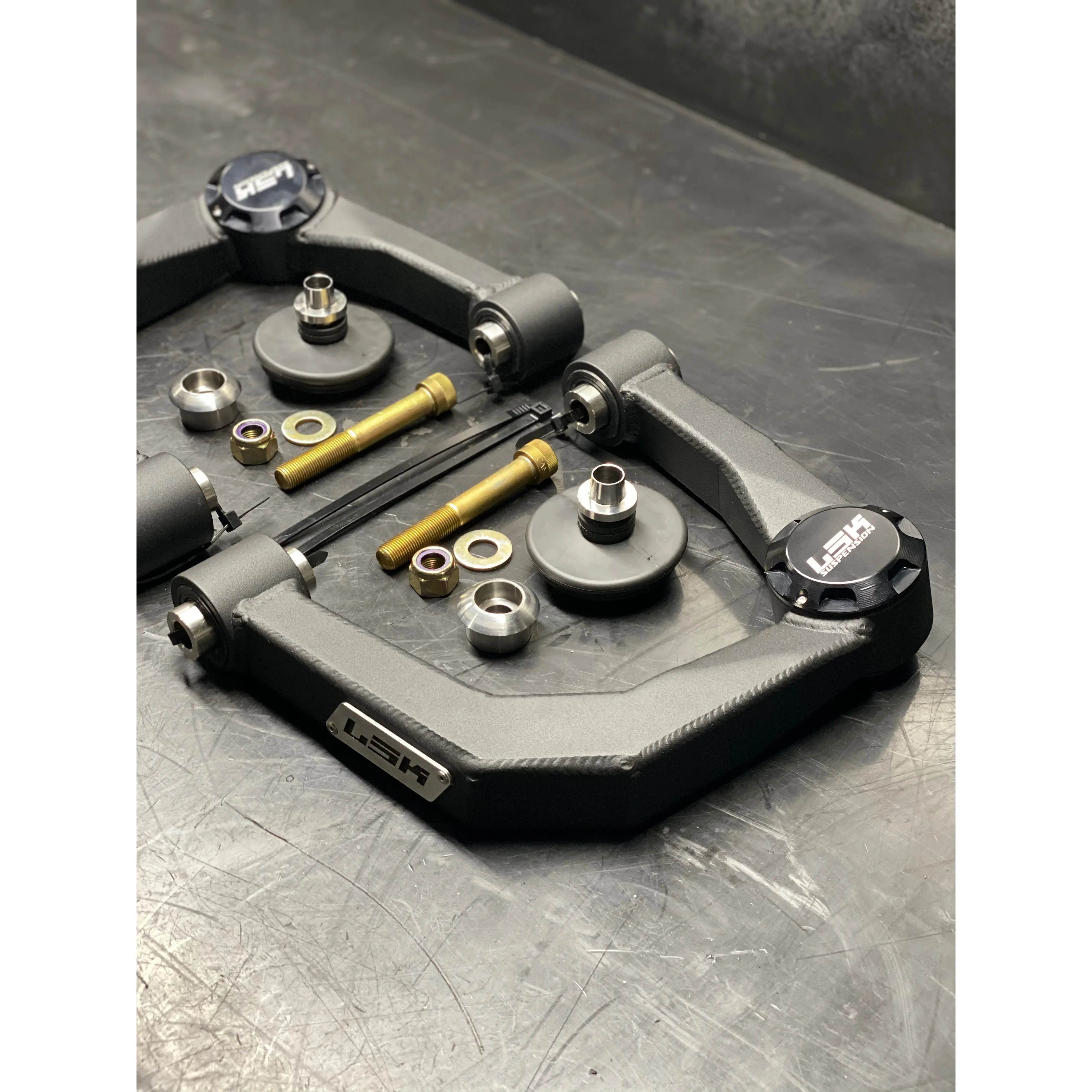

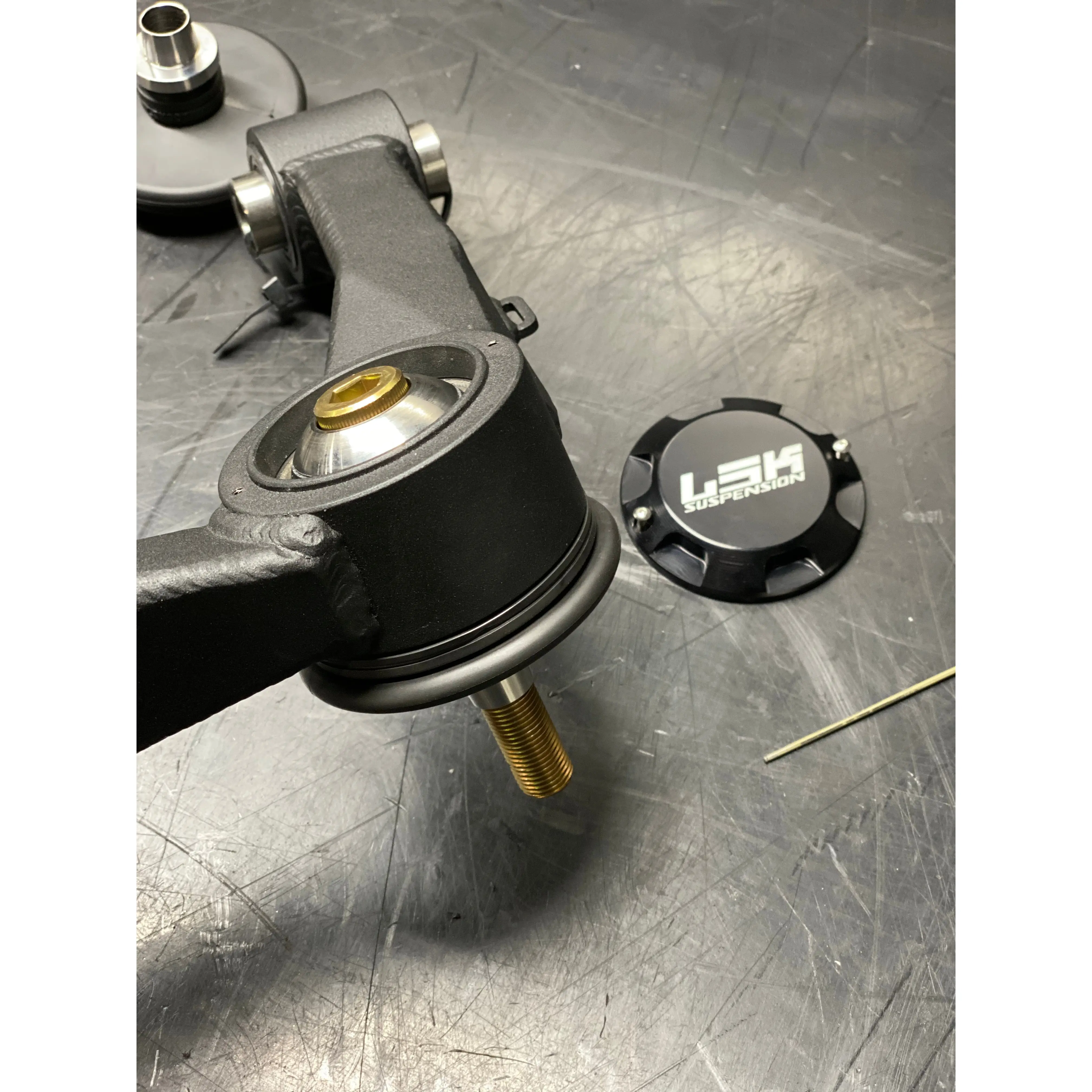

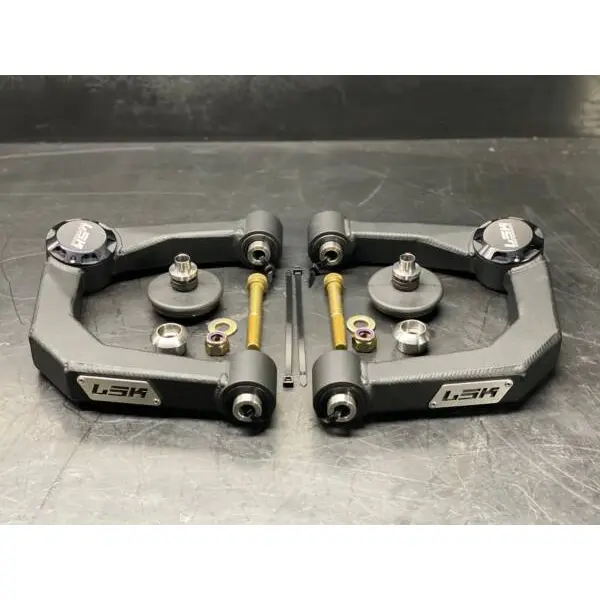

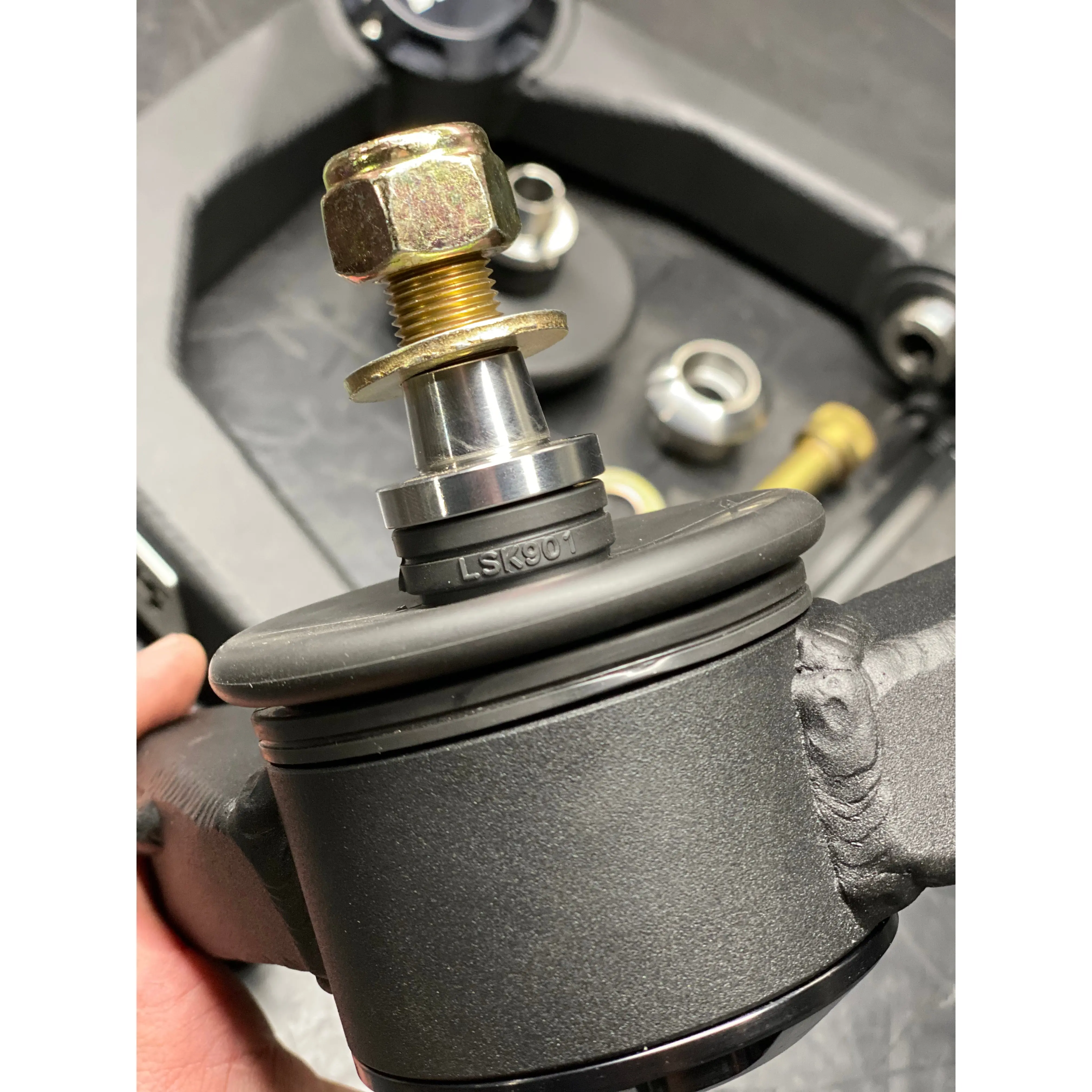

LSK Is Proud To Introduce The 05+ Tacoma Upper Control Arms Replacements. Our Upper Control Arms Utilize A 1.25″ FK Uniball In A Fully Sealed Outer Pivot With Our Proprietary Rubber Boot And Aluminum Cover Cap. Inner Pivots Are Fully Sealed Assemblies As Well With 3/4″ FK Uniballs And 17-4 Stainless Misalignments For A Smooth And Quiet Ride In Any Terrain. INCLUDES: Upper Arm Assemblies (2) HD Zip Ties For OEM Brake Lines 1/16″ Allen Keys For Installation REQUIRES: No Requirements – This Is A Bolt On Components And Reuses The Factory UCA Through Bolt For Assembly OPTIONAL UPGRADES: Finish – Black Powdercoat Or Raw Metal Finish (Note: These Are Shipped Unassembled) IMPORTANT NOTES: -Fits 05+ Tacomas, 10+ 4 Runners, 10+ FJ Cruisers, 03-09 Lexus GX470s & 10+ Lexus GX460’s -Track Width: Stock Track Width -ONLY FITS 2.5″ Coilovers – 3.0″ Coilovers Will Not Clear This Arm At Full Droop -Wheel Travel: Allows More Droop Over Factory But Ultimately Limited By OEM Replacement Coilovers -Outer Pivot: FK 1.25″ Uniball – PN: COM20T – Replacements Can Be Found In Our Builders Components Category -LSK EXCLUSIVE “STAGE 2” UPGRADE: A Fully Sealed 1.25″ FK Uniball Outer Pivot With Our Proprietary Rubber Boot And Aluminum Cover Cap along 3/4″ FK Uniballs on Inner Pivots With Sealed Uniball Cups – No Squeaky Polyurethane Bushings To Grease And Uniballs Are Protected From The Elements For Extended Life If You Or Your Installer Have Any Questions Please Reach Out To Our Sales Team At (909)-305-4824 Or Email Info@LSKSuspension.com
Specifications
Inner Pivots
FK 3/4" Uniball - PN COM12T
Material
DOM Steel Plate and Chromoly Uniball Cups
Outer Pivot
FK 1.25″ Uniball – PN: COM20T
Track Width
Stock Track Width
Wheel Travel
Allows More Droop Over Factory But Ultimately Limited By OEM Replacement Coilovers
Fitment
Fits Toyota Tacoma 2005+.
Model years: 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026
Not sure it fits your build? Contact us with your year and model before ordering.
Why upgrade the Tacoma's upper control arms
On a lifted or hard-driven 2005+ Tacoma, the factory upper arm's sealed ball joint is the first failure point — it binds at steeper angles and wears out unserviceable. These arms replace it with a 1.25-inch FK uniball in a fully sealed outer pivot, protected by our proprietary rubber boot and aluminum cover cap, with fully sealed 3/4-inch FK uniball inner pivots and 17-4 stainless misalignment spacers for a smooth, quiet ride in any terrain.
Installation

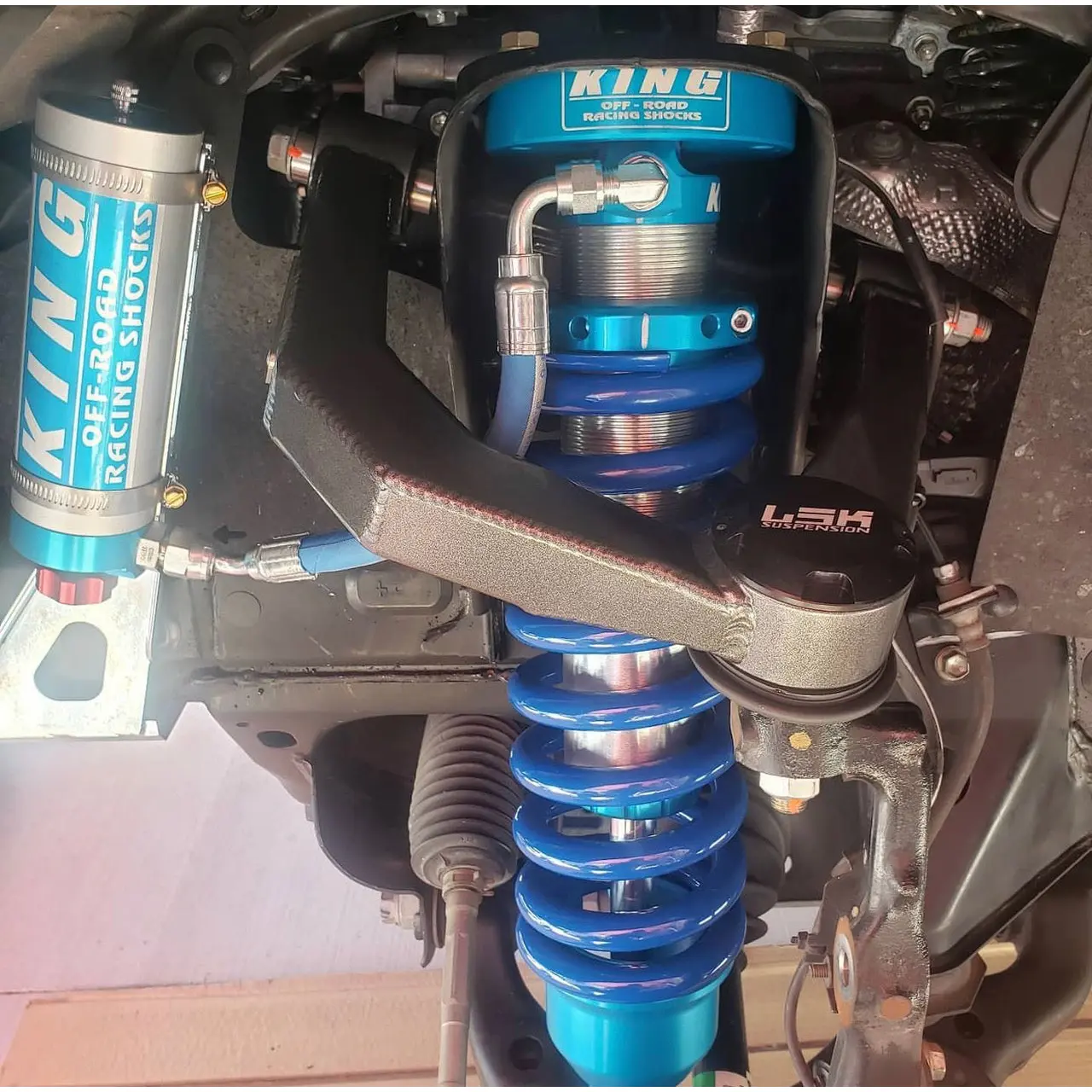

Completely bolt-on: no requirements, no welding — the arms reuse the factory UCA through-bolt. They run at stock height or lifted with factory or aftermarket coilovers, and they are the same arms our Tacoma race and prerunner kits are built around. Available in black powdercoat or raw metal finish (raw ships unassembled). Get an alignment after install.
Common Questions
Do these arms squeak like other uniball arms?
No — the uniball is fully sealed behind a rubber boot and aluminum cover cap, and the inner pivots are sealed assemblies. Uniball strength, factory-arm quiet.
Which Tacomas do they fit?
2005-and-up six-lug Toyota Tacomas, stock height or lifted, factory or aftermarket coilovers.
Do I need anything else to install them?
No — they are bolt-on components that reuse the factory UCA through-bolt. HD zip ties for the OEM brake lines and the install allen keys are included. Budget an alignment afterward.
Customer Reviews
No reviews yet — if you've run this part, yours would be the first.
