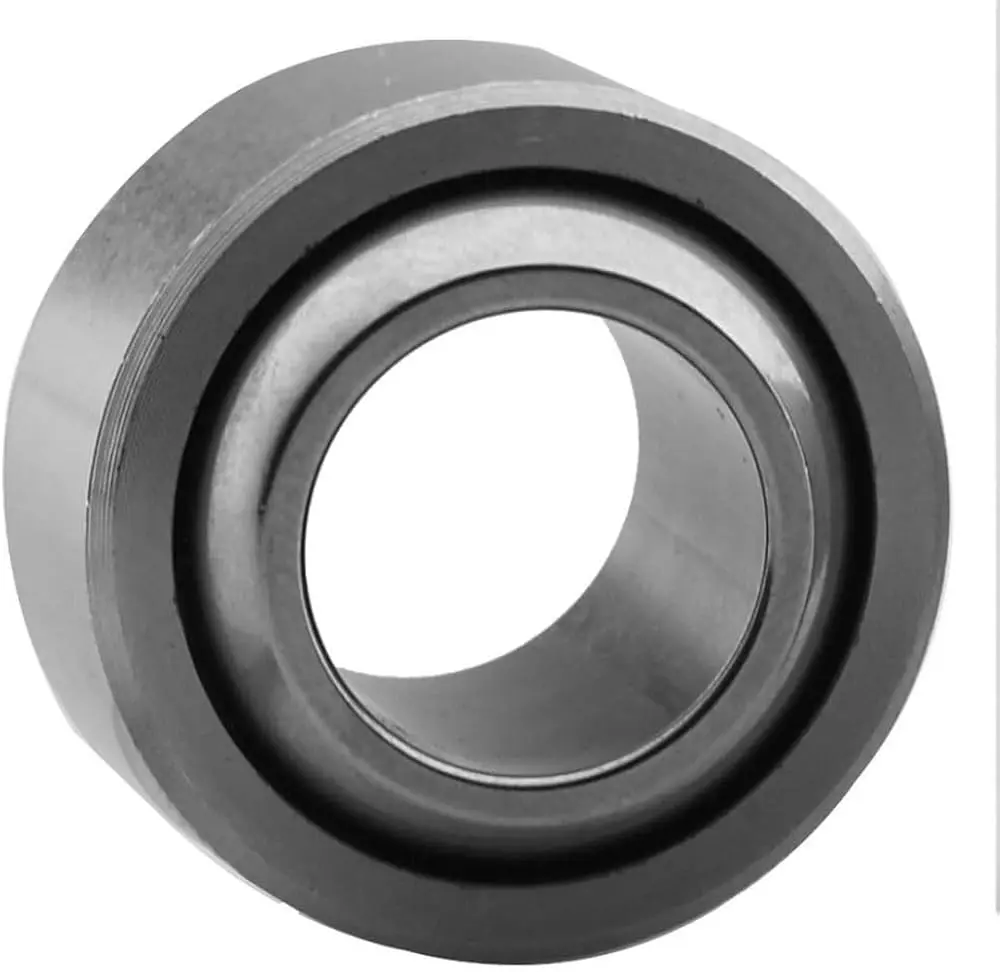

COM12T Spherical Bearing-F2 Fit

Description

*COMMERCIAL SERIES *LUBRICATION GROOVES AND HOLES IN ID & OD OF RACE *PTFE LINER AVAILABLE (ADD SUFFIX “T”) EXAMPLE: COM12T *UNITS WITH PTFE LINER HAVE NO LUBRICATION GROOVES OR HOLES IN RACE BALL: -52100 STEEL -Rc 56 MIN -HARD CHROME PLATED RACE: -LOW CARBON STEEL -OIL COATED

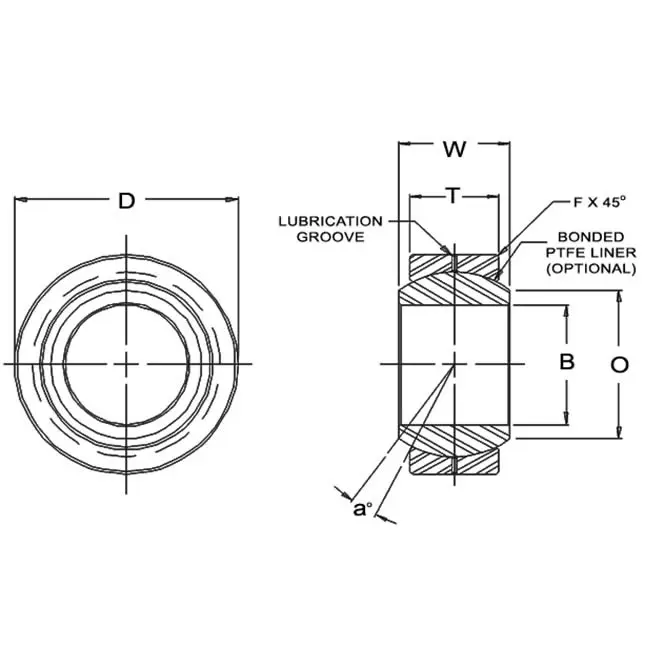

Specifications

• a-Mis Angle

  9

• Approx Weight

  .204 Lbs

• Ball-Diameter

  1.187

• B-Diameter

  .75

• D-Diameter

  1.4375

• F-Chamfer

  .044

• O-Diameter

  .920

• T-Width

  .593

• ULT Static Radial Load

  31,920 Lbs

• W-Width

  .750
