99-06 Chevy / GMC 1500 4x4 to 2WD Race Kit (Torsion Bar Delete)

Description

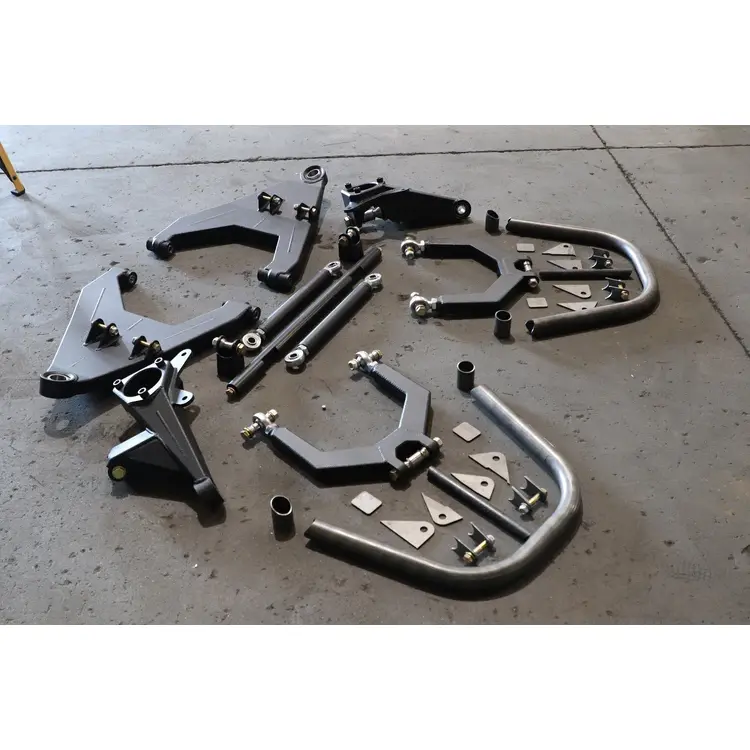

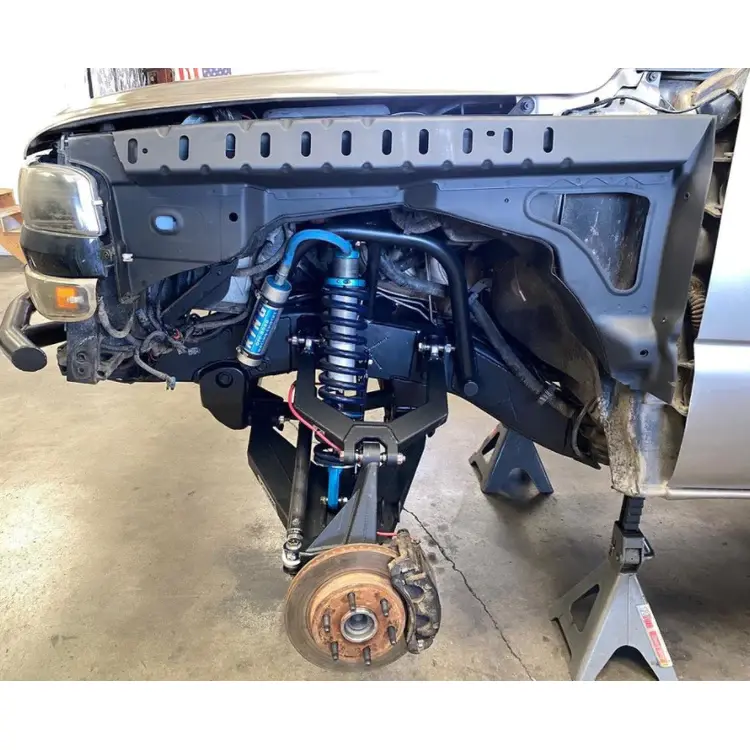

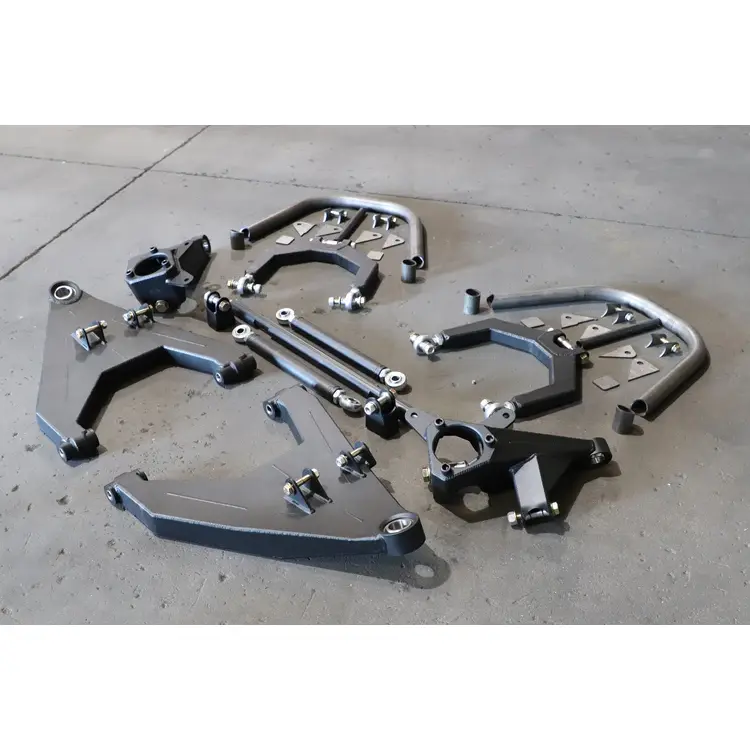

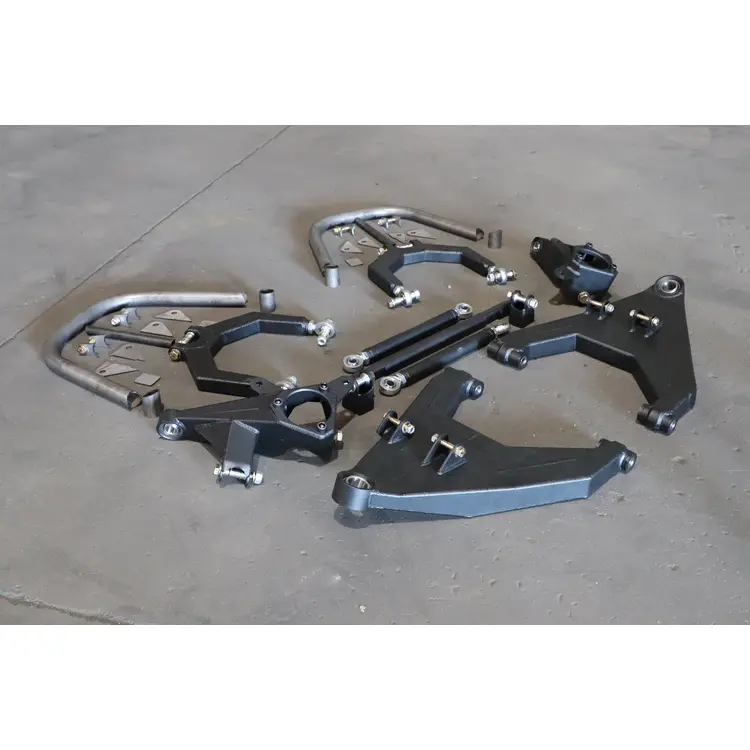

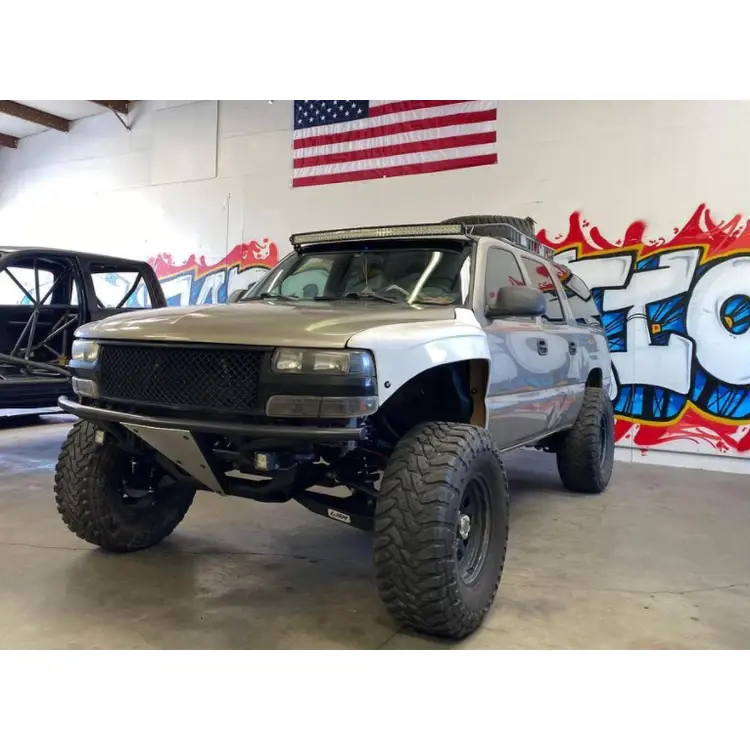

KIT SHIPS RAW AND UNASSEMBLED Description: *LSK Is Proud To Introduce The 1996-2006 GM 1500 4wd to 2wd Race Kit (Torsion Delete). This System Was Designed Around Chevy’s “SS” Model Truck, But Can Be Run On 1500 Frame Suburbans (May Require Slight Taper Modification To Centerlink). Our Race Kit Uses A Set Of Custom Upper & Lower Control Arms, Fully Fabricated Spindle, Billet Centerlink, Extended Heimed Tie Rods, Double Shear UCA Mounts & Tube Shock Hoop To Vastly Improve The On & Off Road Ride Quality. This Kit Is Best Suited For Those Who Use Their Vehicle As A Dedicated Off Road Rig Or One That Sees Occasional Street Use. PERFORMANCE SPECS: *Wheel Travel – Averages 17″ Of Useable Wheel Travel (Ranges 16″ – 17″ Depending On Limit Strap / Bump Stop / Shock Configuration) *Wheel Base: Extended 1.25″ Forward *Track Width: Extended 4.5″ On Each Side *Recommended Tire Size: 37″ *Recommended Wheel: 17 x 9″ w/4.5″ Backspacing (0mm Offset) INCLUDES: *Upper Arms *Lower Arms *Spindles *Machined Centerlink *Tierods *UCA Frame Mounts *Tube Shock Hoop *Grade 8 Hardware *Extended Brake Lines (Minimum 33″ Line End To End) REQUIRES: *10″ x 2.5″ Coilovers (NOT INCLUDED IN KIT ABOVE) *10″ x 3.0″ Bypasses (NOT INCLUDED IN KIT ABOVE) *Welding Is Required – This Is Not A Bolt On System And Will Require Proficient Knowledge In Fabrication To Perform The Installation *Possible Extension Of Factory ABS Sensor Line (Depends On Wire Routing) *Bumpstops – Can Be Configured To Bump Off Of Lower Control Arm, Upper Control Arm Or Spindle Uniball Cup – Typically Recommend a King 2.0″ x 2″ Stroke With King Fabricated Cans *Limit Straps – Recommend 10″ Limit Strap With Adjustable Clevis Kit (Can be Purchased In The Builders Components Section of Our Store) EST Fabrication – Expert Installation for LSK Long Travel Kits If you're looking for precision installation of your LSK Long Travel Kit, EST Fabrication offers highly skilled and professional services to ensure your suspension upgrade is executed with the utmost care and expertise. ✅ Specialized Installation for LSK Long Travel Kits ✅ Experienced Fabrication & Off-Road Suspension Professionals ✅ Reliable, Local, and Committed to Excellence 📍 EST Fabrication 28196 Via Seco St, Apple Valley, CA 92308, United States 📞 (909) 957-2503 IMPORTANT NOTES: *WHILE WEBSTORE MAY DISPLAY AN IN STOCK STATUS, WEBSTORE DOES NOT TRACK KIT INVENTORY IN REAL TIME – PLEASE CONTACT OUR SALES TEAM FOR CURRENT LEAD TIME ON KIT COMPONENTS *Coilovers And Bypasses Are Custom Ordered And Not Always Stocked Per Application. Please Email Our Sales Team For Current Lead Time On Shock Packages *Finish – Black Powdercoat Or Raw Finish (Note: Raw Kits Ship Unassembled) *Upper Control Arm: Use 7/8″-14 Rod Ends – Replacement Rod Ends Can Be Purchased Through Our Online Store Under Builders Components *Spindles: Use A 1.00″ FK Uniball (PN: WSSX16T) And Replacements Can Be Purchased Through Our Online Store Under Builders Components *Lower Control Arms: Use A 1.50″ FK Uniball (PN: COMH24T) & LSK 1.75″ Delrin Bushings. Replacements Can Be Purchased Through Our Online Store Under Builders Components *Permanent Frame Modification – Shock Tower Is Installed In Place Of Factory Shock & Upper Control Arm Mounts *If You Or Your Installer Have Any Questions Please Reach Out To Our Sales Team At (909)-305-4824 Or Email orders@lsksuspension.com

Specifications

• Recommended Tire Size

  37″

• Recommended Wheel

  17 x 9″ w/4.5″ Backspacing (0mm Offset)

• Track Width

  Extended 4.5″ On Each Side

• Wheel Base

  Extended 1.25″ Forward

• Wheel Travel

  Averages 17″ Of Useable Wheel Travel
